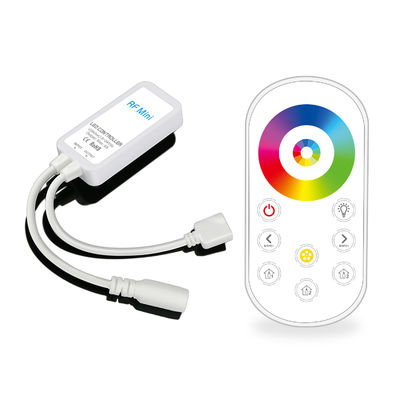

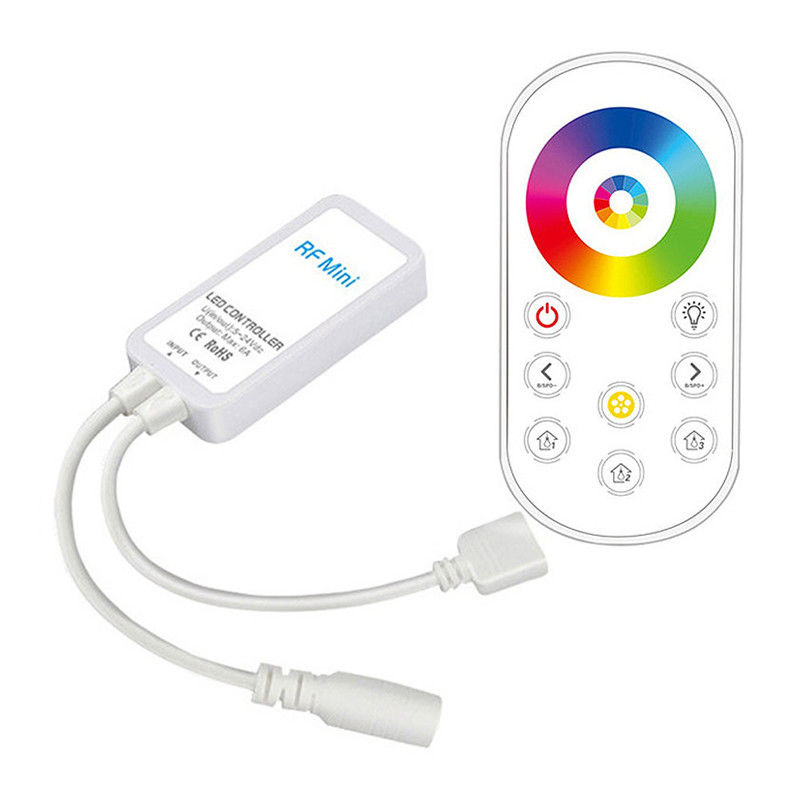

DC 24V LED RGB Controller Mini RF Wireless Touch Remote For LED 5050 Strip

• Wireless Slim Touch RF Remote Control is a smart and compact LED controller.
• It is very convenient and quick to use this controller without any welding, just plug in the power supply and the light bar label directly;
• The controller is suitable for RGB/RGBW/RGBCCT lights, such as 5050 light bar module and other dynamic effects such as gradient, jump, flash, etc.;
• It can be selected according to the different needs of customers, and a variety of dynamic color options can be widely used in popular places such as TV background walls, bedside tables, bar counters, etc.

Basic parameters:

1. Working temperature: -20~60℃
2. Input voltage: DC5-24V
3. Output current: maximum 6A
4. Connection method: common anode
5. Net weight: about 55g
6. Gross weight: about 62g
7. Static power consumption: <0.5W
8. Output power: 5V: <30W; 12V: <72W; 24V: <144W
9. Controller size: L58*W28*H11mm
10. Remote control size: about L120*W60*H22mm RGB - 3CH*2A RGBW - <6A, RGB+CCT - RGB 3*2A + CCT 2*2A total 6A
