| Place of Origin: | China |
| Certification: | CE |
| Model Number: | Touch Dimmer |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 3 layers of safety packaging |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Warranty(Year): | 1-Year | Lighting Solutions Service: | Lighting And Circuitry Design, Onsite Metering, Project Installation |
|---|---|---|---|
| Type: | Remote Control, Full Touch 86 Panel | Product Name: | Led Dimmer |
| Voltage: | DC5-24V | Function: | RF 0~100% Dimming |
| Output Current: | 15A*2CH | Keyword: | Single Color Full Touch Panel |
| Output Power: | 5V:≤150W;12V:≤360W;24V:≤720W | Material: | Iron |
| High Light: | 30A RF Single Color Remote Controller,Touch RF Single Color Remote Controller |
||

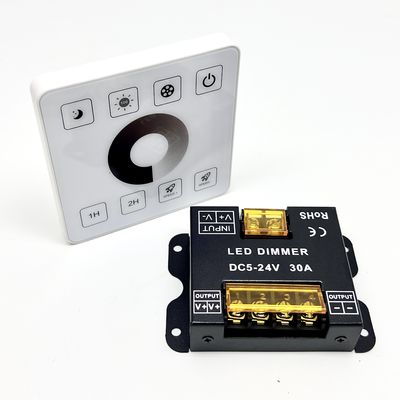

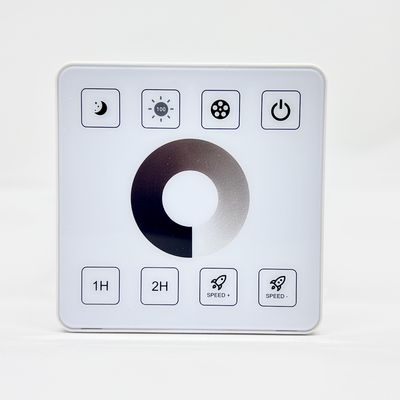

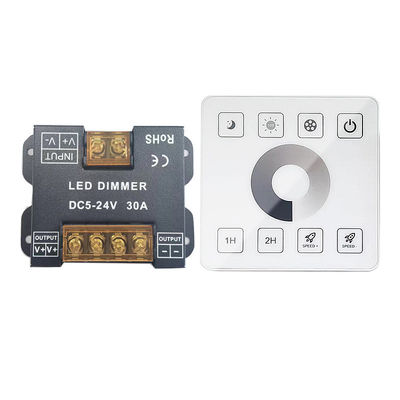

LED Single Color Dimming Controller 30A High Power with Square RF Full Touch Remote Control Panel
IRON CASE
With high-quality iron shell, it has strong temperature resistance and sturdiness.
Input and output are connected by bolts,
Comes with a dust-proof and moisture-proof cover for easy installation. security
• Supply voltage: DC5V-24V
• Output current: <15A*2CH
• Output power: 5V:5150W,12V:5360W, 24V:5720W
• Working temperature: -20-60°C
• Output: Two CMOS open-drain outputs
• Static power consumption: <1W
• Connection method: common anode
• Controller dimensions: L85*W62*H35mm
• Remote control dimensions: L86*W86*H12mm
• Packing size: L94×W94×H42mm
• Material: iron shell controller & PC control panel
• Net weight: 140g
• Gross weight: 145g
|
item
|
value
|
|
Warranty(Year)
|
1-Year
|
|
Lighting solutions service
|
Lighting and circuitry design, Onsite metering, Project Installation
|
|
Product Weight(kg)
|
0.14
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Megbox
|
|
Type
|
Remote Control
|
|
Max. Load Power
|
720W
|
|
Connection Mode
|
common anode
|
|
Type
|
Full touch 86 panel
|
|
Product name
|
Led Dimmer
|
|
Application
|
Control Lights
|
|
Voltage
|
DC5-24V
|
|
Function
|
RF 0~100% Dimming
|
|
Certificates
|
CE FCC ROHS
|
|
Output Current
|
15A*2CH
|
|
Keyword
|
Single Color Full Touch Panel
|
|
Output power
|
5V:≤150W;12V:≤360W;24V:≤720W
|
|
Material
|
Iron
|
Contact Person: Mr. Zhou
Tel: +8613823215633
