| Place of Origin: | China |
| Certification: | CE |
| Model Number: | Touch Control |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Lighting Solutions Service: | Lighting And Circuitry Design, Project Installation | Product Name: | RF Double Color Controller |
|---|---|---|---|
| Application: | Led Strip Lighting | Keyword: | CCT |
| Working Temperature: | -20~60℃ | Input Voltage: | DC5-24V |
| Controller Size: | L58*W28*H11mm | Remote Control Size: | About L120*W60*H22mm |
| High Light: | Mini RGB CCT LED Controller,Wireless RGB CCT LED Controller,Strip Light RF Wireless Dimmer |
||

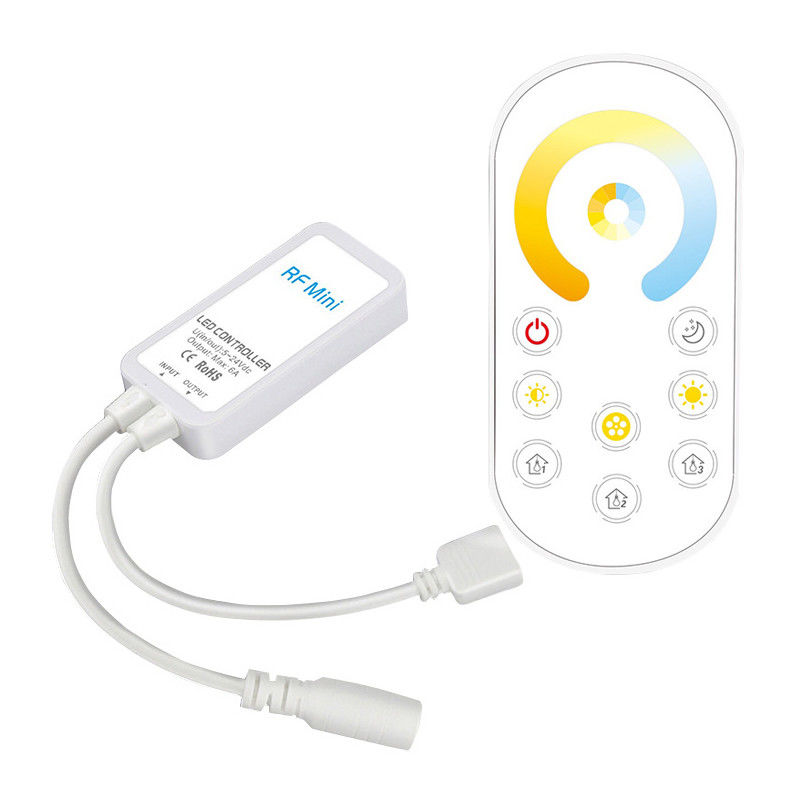

Mini CCT LED Controller Dual Color Temperature Dimmer with Wireless RF Touch Remote Control for 5050 Light Strip
Description:
4-PIN LED CCT Controller + RF Touch Remote Controller Brightness Dimming & Color Temperature Adjustable for Dual White LED Strip
Wireless Slim Touch Rf Remote Controller is a Smart and Compact Led Controller. No Welding is Required to Use This Controller, Just Plug in the Power Supply and the Light Bar Label, Which is Very Convenient and Fast The Controller is Suitable for Double White Lights, Such As 5050 Light Strips; Dynamic Gradient, Jump and Other Effects, Strobe, Etc.; Optional According to Customer Needs, As Well As a Variety of Dynamic Color Options. It Can Be Widely Used in Popular Places Such As Tv Backdrops, Bedside Tables and Bar Counters.
Basic parameters:
●Working temperature: -20~60℃
●Input voltage: DC5-24V
●Output current: maximum 6A
●Connection method: common anode
●Net weight: about 55g
●Gross weight: about 62g
●Static power consumption: <0.5W
●Output power: 5V: <30W; 12V: <72W; 24V: <144W
●Controller size: L58*W28*H11mm
●Remote control size: about L120*W60*H22mm 4-PIN LED CCT Dimming Controller + RF Touch Remote Control
Specification:
|
item |
value |
|
Warranty(Year) |
1-Year |
|
Lighting solutions service |
Lighting and circuitry design, Project Installation |
|
Product Weight(kg) |
0.06 |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
MegBox |
|
Type |
Remote Control |
|
Max. Load Power |
144W |
|
Connection Mode |
common anode |
|
Product name |
RF Double White controller |
|
Application |
Led Strip Lighting |
|
Keyword |
CCT |
|
Working temperature |
-20~60℃ |
|
Input voltage |
DC5-24V |
|
Output current |
maximum 6A |
|
Static power consumption |
<0.5W |
|
Output power |
5V: <30W; 12V: <72W; 24V: <144W |
|
Controller size |
L58*W28*H11mm |
|
Remote control size |
about L120*W60*H22mm |
Product Description
