Name: 10A LED Controller Dimmer DC 12V 24V Dual Color Temperature Rf Full Touch
Brand: 10A LED Controller Dimmer DC 12V 24V Dual Color Temperature Rf Full Touch
SKU: Dimmer
Rating: 4.8 (145 reviews)

Home Products LED Controller Dimmer

10A LED Controller Dimmer DC 12V 24V Dual Color Temperature Rf Full Touch

Product Details:

Place of Origin:	China
Certification:	CE
Model Number:	Dimmer

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	100pcs/box
Delivery Time:	3-10days
Payment Terms:	T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Warranty(Year):	1-Year	Product Weight（kg）:	0.14
Type:	Remote Control, Full Touch 86 Panel	Max. Load Power:	240W
Product Name:	Led Dimmer	Application:	Control Lights
Voltage:	DC5-24V	Function:	RF 0~100% Dimming
Output Current:	10A	Keyword:	CCT Full Touch Panel
Output Power:	12V≤120W;24V≤240W	Material:	Iron
High Light:	LED Controller Dimmer 12V , LED Controller Dimmer 24V , Touch rf led controller

10a High Power Led Controller Dimmer Dc12 24v Dual Color Temperature Rf Full Touch Panel Dimmer

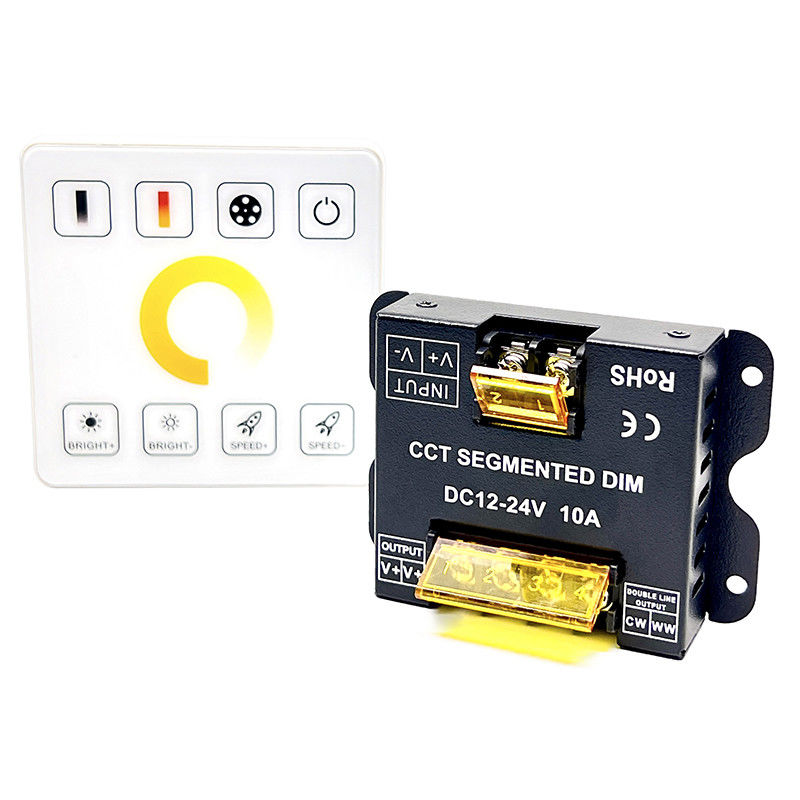

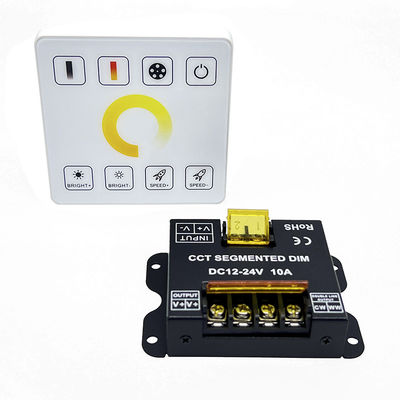

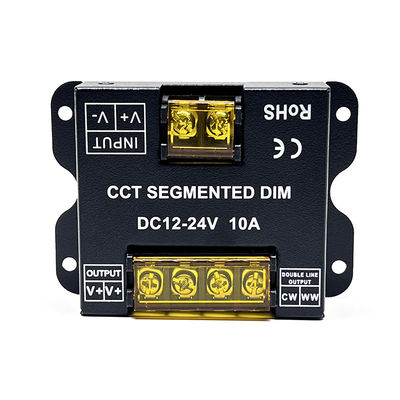

10A*2 Channels High Power LED Iron Shell Dimming Controller DC 12-24V with RF Full Touch Color Ring Panel for Dual Color Temperature Light Strips
CCT LED Dual Color Temperature Dimming Controller:
Compatible with two-wire light strips and three-wire light strips; you can choose dynamic effects such as gradual change, jump change, gradual light and dark, as well as transformer power off to switch static light according to different needs. Adjustable color temperature, brightness, speed.

1• Supply voltage: DC12V-24V
2• Output current: <5*2CH
3• Output power: 12V:5120W, 24V:5240W
4• Working temperature: -20-60°C
5• Output: Two CMOS open-drain outputs
6• Static power consumption: <1W
7• Connection method: common anode
8• Controller dimensions: L85*W62*H35mm
9• Remote control dimensions: L86*W86*H12mm
10• Packing size: L94xW94xH42mm
11• Net weight: 140g
12• Gross weight: 145g

Specification

Warranty(Year)	1-Year
Lighting solutions service	Lighting and circuitry design, Onsite metering, Project Installation
Product Weight(kg)	0.14
Place of Origin	China
Type	Remote Control
Max. Load Power	240W
Connection Mode	common anode
Type	Full touch 86 panel
Product name	Led Dimmer
Application	Control Lights
Voltage	DC5-24V
Function	RF 0~100% Dimming
Certificates	CE FCC ROHS
Output Current	10A
Keyword	CCT Full Touch Panel
Output power	12V≤120W;24V≤240W
Material	Iron

Product Description

10A LED Controller Dimmer DC 12V 24V Dual Color Temperature Rf Full Touch 0

RGB LED Color Dimming Controller

There are 27 different change modes to choose from, and the change speed can be adjusted. Adjust the brightness, switch and other functions of static colors.

DIM LED Single Color Dimming Controller

You can choose dynamic effects such as gradient, jump, strobe, etc. according to your needs. The product can adjust brightness, speed, and delay shutdown; it provides two simultaneous outputs.
