| Place of Origin: | China |
| Certification: | CE |
| Model Number: | PIR Sensor switch |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 200pcs/box |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Lighting Solutions Service: | Lighting And Circuitry Design, Project Installation | Type: | Sensor Switch |
|---|---|---|---|
| Product Name: | LED PIR Sensor | Application: | Single Color LED Strip |
| Input Voltage: | DC5V-DC24V | Output Current: | 5A/CH |
| Size: | L50*W40*H22mm | Cable Length: | 30cm |
| Interface Type: | DC5.5*2.1mm | Delay Time: | 15s~6min (factory Default Is 15 Seconds) |
| Induction Distance: | About 7M | Sensing Angle: | Wide-angle 120 |
| High Light: | 120W LED Mini Controller,LED Mini Controller 5V,12V single color led strip controller |
||

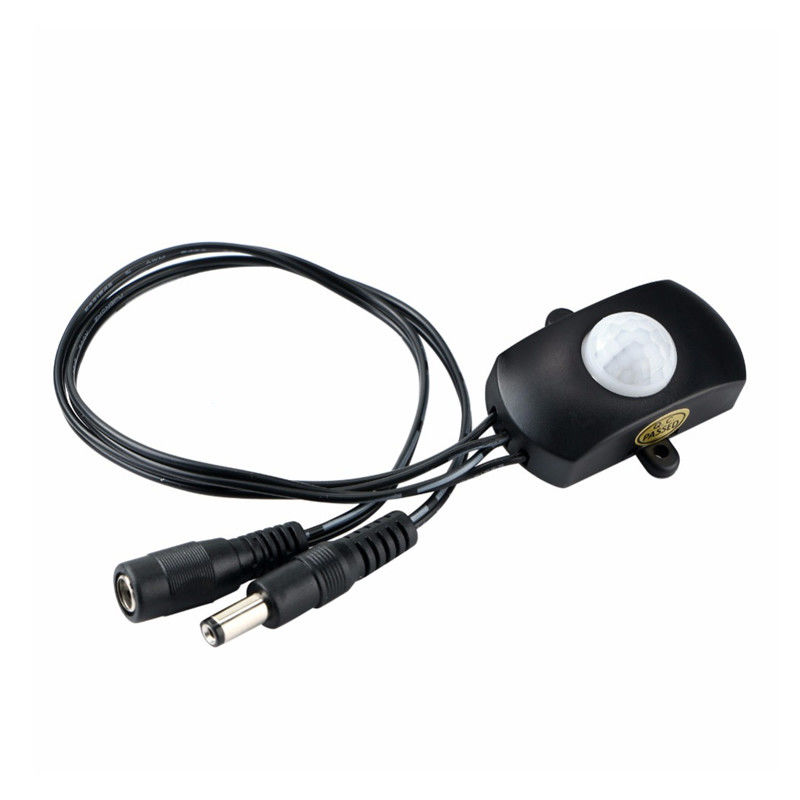

LED Mini Controller Adjustable Auto Pir Infrared Motion Sensor Detector For Led Light Strip Switch Lighting
Description - Text Version
DC5V 12V 24V 5A PIR Motion Sensor Switch Mini Infrared IR Motion Sensor Detector Indoor Outdoor On Off LED Strip Light Switch
Product introduction:
Human body induction is an infrared detection controller. Using infrared technology, a special sensor detects changes in the infrared spectrum of the human body and automatically turns it on, free from external noise interference, and its performance is better than voice-activated switches and touch switches.
Continuous lighting time can be adjusted
◆Adopt international standard DC5.5*2.1mm interface
◆The base has 2 fixing holes for easy installation Applicable scene: parking lot, corridor, bathroom, bedroom, cabinet, courtyard gate, etc.
Basic parameters:
◆ Input voltage: DC5-24V
◆ Output voltage: DC5-24V
◆ Output current: 5A(max)
◆ Product size: L50*W40*H22mm
◆ Cable length: 30cm
◆ Interface type: DC5.5*2.1mm
◆ Weight: 30g
◆ Delay time: 15s~6min (factory default is 15 seconds)
◆ Induction distance control distance: about 7 meters
◆ Sensing angle: wide-angle 120
◆ Induction type: PIR human body infrared induction
◆ Working temperature: -20~60C
Specification
|
item |
value |
|
Warranty(Year) |
1-Year |
|
Lighting solutions service |
Lighting and circuitry design, Project Installation |
|
Product Weight(kg) |
0.08 |
|
Brand Name |
MegBox |
|
Type |
Sensor Switch |
|
Max. Load Power |
120W |
|
Connection Mode |
DC jack |
|
Product name |
LED PIR sensor |
|
Application |
Single Color LED Strip |
|
Input Voltage |
DC5V-DC24V |
|
Output Current |
5A/CH |
|
Size |
L50*W40*H22mm |
|
Cable length |
30cm |
|
Interface type |
DC5.5*2.1mm |
|
Delay time |
15s~6min (factory default is 15 seconds) |
|
Induction distance |
about 7M |
|
Sensing angle |
wide-angle 120 |
Product Description
Contact Person: Mr. Zhou
Tel: +8613823215633
