14 keys 3 pin LED Mini Controller , Sp002e Pixel Controller for LED light module

14 keys 3 pin LED Mini Controller , Sp002e Pixel Controller for LED light module

14 keys 3 pin LED Mini Controller , Sp002e Pixel Controller for LED light module
  • 14 keys 3 pin LED Mini Controller , Sp002e Pixel Controller for LED light module
  • 14 keys 3 pin LED Mini Controller , Sp002e Pixel Controller for LED light module
Product Details:
Place of Origin: China
Certification: CE
Model Number: pixel controller
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 500pcs/box
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Warranty(Year): 1-Year Lighting Solutions Service: Other
Type: Remote Control Max. Load Power: 96W
High Light:

3Pin LED Mini Controller

,

14Keys LED Mini Controller

,

LED Sp002e Pixel Controller

DC5V-24V LED controller SP002E 3 keys SP103E 14 keys 3pin for WS2812B WS2811 WS2812 LED light module

Peculiarities:

1 Voltage: DC5V
2 currents: <10mA

3 temperature: -20 ~ 60C
4 sizes: L29 * W12 * h3mm
5 Weight: 0.03kg
6 effects: 300 kinds of variations, covering market effects, 16 can program any combination and play automatically for all symphony controller modes;
7 maximum number of control points: 2048 points
8 remote control distances: 30 meters (14-key multi-function RF remote control)
Notes: This controller had to work with DC5V WS2801 DC5V 2812B DC12V 2811 LED

 Package included:

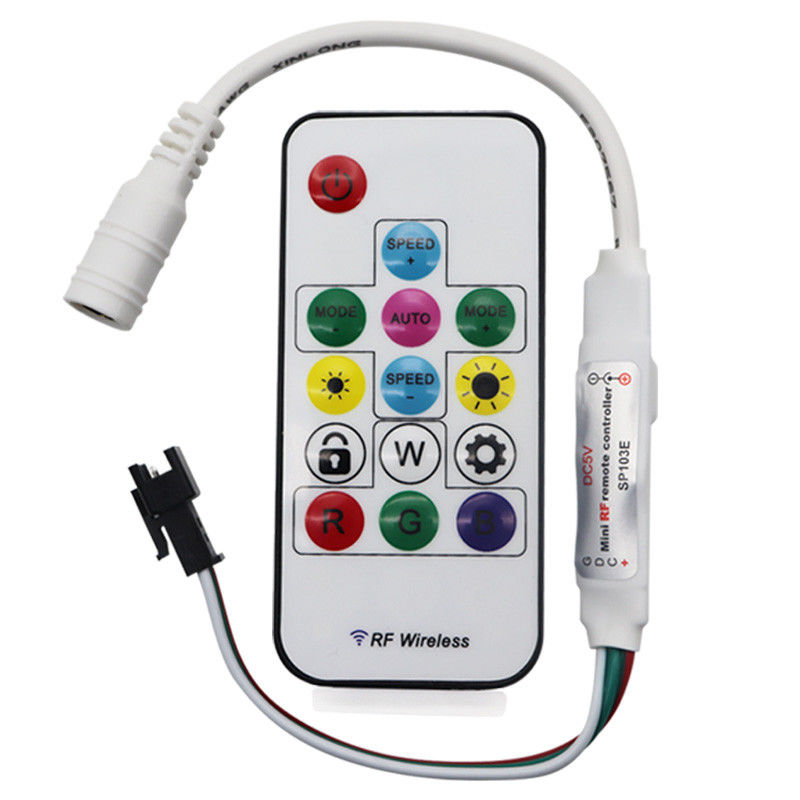

SP103E
1x 14Key RF remote controller (battery not included)



Features:
1. Runs stably, easy to use and easy to connect;
2. Can be configured to support almost any single-wire or two-wire LED-DRIVER-IC;
3.With 76 kinds of patterns, which are bright and beautiful;
4. It can drive up to 2048 pixels;

Key functions:
MODE+:Previous mode
Speed:Speed adjustment key
MODE-:Next mode
MODE+ and MODE-:Press MODE+ and MODE- at the same time, then release them at the same time to enter the loop playback mode

Parameters:
Working voltage: DC5V-24V
Power consumption: less than 1W.
Controller model: 2PIN wire / USB

Package includes:
SP002E
1 mini controller with 3 buttons (LED power supply and power adapter are not included)
