Name: 6A RGB LED Strip Amplifier 3 Channel Dimming Signal For Strip Lighting
Brand: 6A RGB LED Strip Amplifier 3 Channel Dimming Signal For Strip Lighting
SKU: Amplifier
Rating: 5 (180 reviews)

Home Products LED Strip Amplifier

6A RGB LED Strip Amplifier 3 Channel Dimming Signal For Strip Lighting

Product Details:

Place of Origin:	Guangdong, China
Certification:	ce
Model Number:	Amplifier

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	5000pcs/box
Delivery Time:	3-10days
Payment Terms:	T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Warranty(Year):	1-Year	Lighting Solutions Service:	Lighting And Circuitry Design, Onsite Metering, Project Installation
Connection Mode:	Common Anode	Product Name:	Mini RGB Signal Amplifier
Application:	RGB Led Strip Lighting	Voltage:	DC5V-DC24V
Output Current:	6A/CH	Power:	5V:<30W ; 12V:<60W ; 24V:<120W
Operating Temperature:	-20-+60°c	Product Size:	L45W12H3MM
High Light:	LED Strip Amplifier 6A , LED Strip Amplifier 3Channel , Dimming rgb strip amplifier

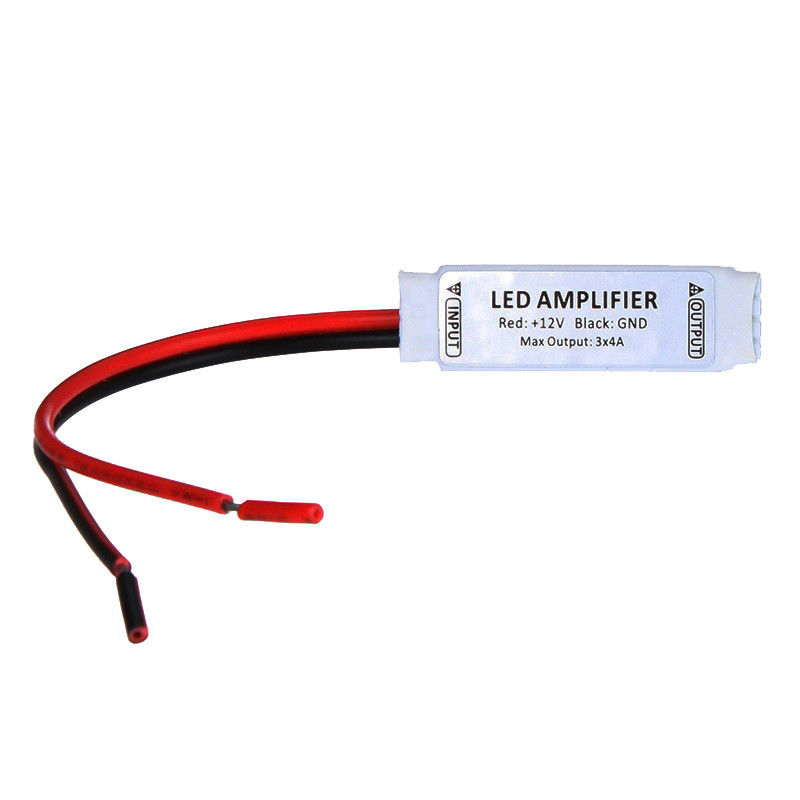

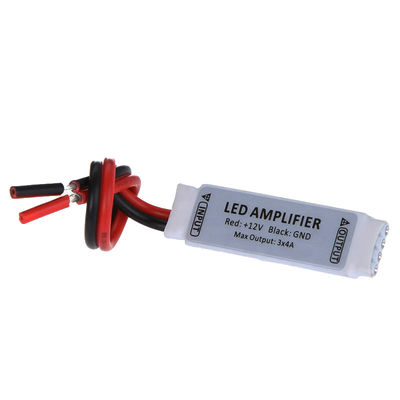

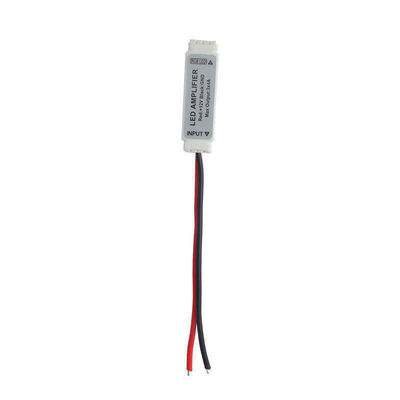

Mini 6a Rgb Led Strip Amplifier 3 Channel Dimming Signal Repeater

Product Features:
This mini amplifier is specially designed for RGB LED lamps and lanterns, Such as: RGB 5050 strip; easy wiring, easy to use; at the same time to use with the controller, can meet the application of a wide range, high power output, require synchronous change. Simply put, the amplifier is connected in the middle of a group of lights, the lights will be connected in series.
Product Specification:

1.Working voltage:DC5-24V

2.output current:6A Max.

3.output power: 5V≤30W; 12V≤60W; 24V≤120W

4.Output channel: 3 channels (RGB)

5.Product size:L45W12*H3mm

6.Length:220mm

7.Weight:10g

8.Working temperature:-20~60°C

9.Application: Used to receive the signal from LED controller and send the signal to another group of LED light source. -Note: The amplifier can not be used alone, need to be used with the controller, RGB led lamps together.

Package List:
Mini RGB LED Signal Amplifier*100PCS
