| Place of Origin: | China |
| Certification: | CE |
| Model Number: | Amplifier |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Packing |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Warranty(Year): | 1 Year | Lighting Solutions Service: | Project Installation |
|---|---|---|---|
| Type: | RGB Amplifier | Max. Load Power: | 720W |
| Input Voltage: | 5-24VDC | Input Signal: | Remote Control |
| Output Current: | 3 Channel, 10A Per Channel | Output Type: | Constant Voltage |
| Working Temperature: | -20~55℃ | Application: | For RGB LED Strip |
| Size: | L110*W90*H25mm | Net Weight: | 150g |
| High Light: | 720W LED Strip Repeater,30A LED Strip Repeater,Strip Light LED RGB Amplifier |
||

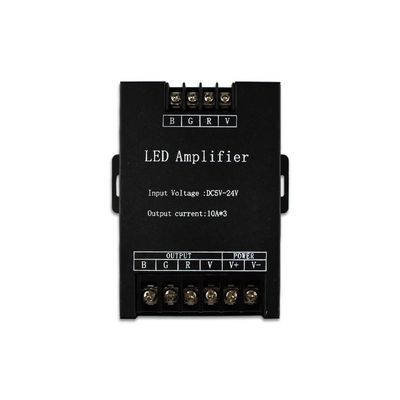

LED Strip Ampifier Repeater 30A Led RGB Amplifier Iron Dc5-24v High Power Output For Led Strip Light
main feature:
1. The input voltage is adaptive DC5V or 12~24V, and has the function of input polarity protection.
2. Adapt to various PWM dimming signals, the change effect is delicate and flicker-free.
3. Using high-power dimming control MOS tube, the driving load capacity is strong, the maximum can reach 30A, and the performance is stable.
4. Input and output brightness remain almost unchanged.
5. The signal input and output of the power expander have
|
item |
value |
|
Warranty(Year) |
1 Year |
|
Lighting solutions service
|
Project Installation
|
|
Luminous Efficacy(lm/w)
|
6
|
|
Product Weight(kg)
|
0.15
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
MegBox |
|
Type
|
Remote Control
|
|
Max. Load Power
|
720W
|
|
Connection Mode
|
Common anode
|
|
Input Voltage
|
5-24VDC
|
|
Input signal
|
Remote control
|
|
Output Current
|
3 channel, 10A per channel
|
|
Output type
|
Constant Voltage
|
|
Output Signal
|
PWM LED Dimming Signal
|
|
Dimming range
|
0-100% dimming
|
|
Working temperature
|
-20~55℃
|
|
Application
|
for RGB LED strip
|
|
Size
|
L110*W90*H25mm
|
|
Net Weight
|
150g
|
