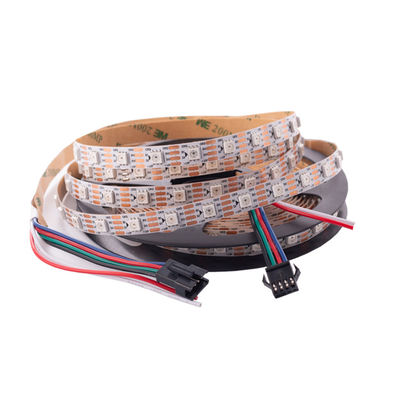

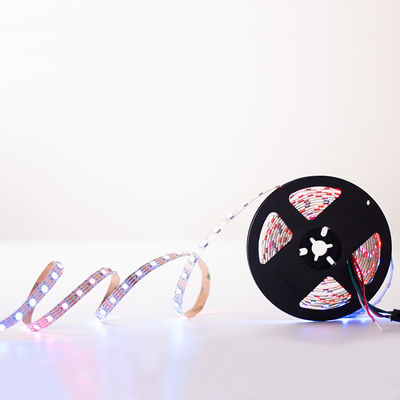

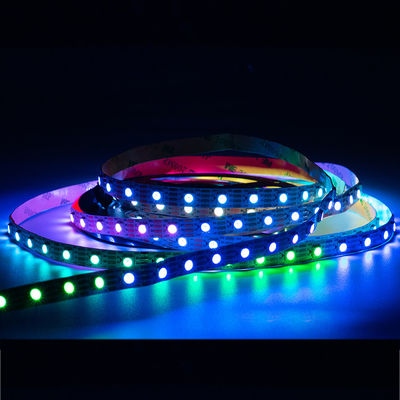

DC12V WS2815 RGBIC LED Pixel Strip Light Individually Addressable For Residential

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	10 meters
Price:	$1.75/meters 10-499 meters
Packaging Details:	5 meter/roll or Customized
Supply Ability:	1000000 Meter/Meters per Month

Contact Now

Detailed Product Description

Application:	Residential	Item Type:	Light Strings
Color Temperature(CCT):	RGB	IP Rating:	IP20 IP65 IP67 IP68
Lamp Body Material:	Copper	CRI (Ra>):	80
Input Voltage(V):	DC 12V	Lamp Luminous Efficiency(lm/w):	30
Lamp Luminous Flux(lm):	18	Warranty(Year):	2-Year
Working Lifetime(Hour):	50000	Working Temperature(℃):	-10 - 40
Color Rendering Index(Ra):	80	Light Source:	LED
Support Dimmer:	Yes	Lighting Solutions Service:	Lighting And Circuitry Design, Onsite Metering, DIALux Evo Layout, LitePro DLX Layout, Auto CAD Layout, Agi32 Layout, Project Installation
Lifespan (hours):	50000	Working Time (hours):	50000
Product Weight（kg）:	0.065	Control Mode:	Touch Control, APP Control, Remote Control, Switch Control, Voice Control, Sensor Control, Other
Product Name:	WS2815 LED STRIP	LED Quantity:	30led,60led,144led
IC Chip:	WS2815	PCB Color:	White/Black
PCB Width:	10mm/12mm	View Angle:	120 Degree
Connectors:	4PIN JST Female And Male Connectors	MOQ:	1 Meter
Feature:	Easy Installation	Usage:	Home Decoration
Port:	Shenzhen Port
High Light:	RGBIC LED Pixel Strip Light , DC12V LED Pixel Strip Light , Residential ws2815 led strip

DC12V WS2815 RGBIC Individually Addressable Dual Signal 30 60 144 Pixels White Black Waterproof 12V WS2815 LED Strip Lig

Name: DC12V WS2815 RGBIC LED Pixel Strip Light Individually Addressable For Residential
Brand: DC12V WS2815 RGBIC LED Pixel Strip Light Individually Addressable For Residential
SKU: DC12V WS2815 RGBIC LED Pixel Strip Light Individually Addressable For Residential
Price: 1.75 USD
Availability: InStock
Rating: 4.6 (192 reviews)

Product Description

Input Voltage	DC12V
Power	30/60/144Leds --- 7.2W/14.4W/34.56W/Meter
LED Resource	WS2815 led (5050 SMD RGB LED with built-in improved version of ws2812 ic)
Pixels:	30/60/144 Leds/m or customized
Colors	Full color RGB, dream color changing
Bits/Color	8-Bits/Color
FPC Color	BLACK / White
FPC Width	10MM /12MM/Customizable
Protection Rate	IP20 Non-Waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube
Cuttable	Every LED is cuttable
Working Temperature	-40 - 70 °C
Storage Temperature	-50 - 80 °C
Source Life	50,000 hours
Connector	4PIN connector terminal pair
Recommand controllers	K-1000C,SP105E bluetooth controller,SP107E music Controller,SP108E wifi controller etc.

Advantage:

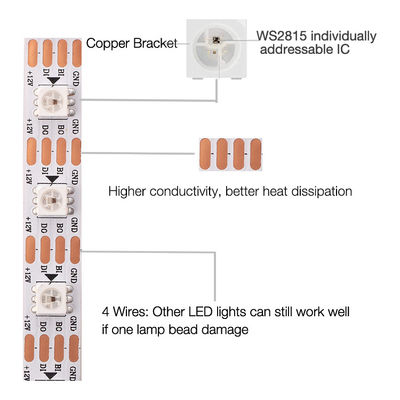

(1)One pixel damaged will not affect the other LEDs working. (2)The power protection,if +12V and GND reverse polarity,the LED will not be burned. (3) Dual signal wires version, signal can jump to transfer. (4)The original electronic devices integrated,it does not cause virtual welding in the installation process.

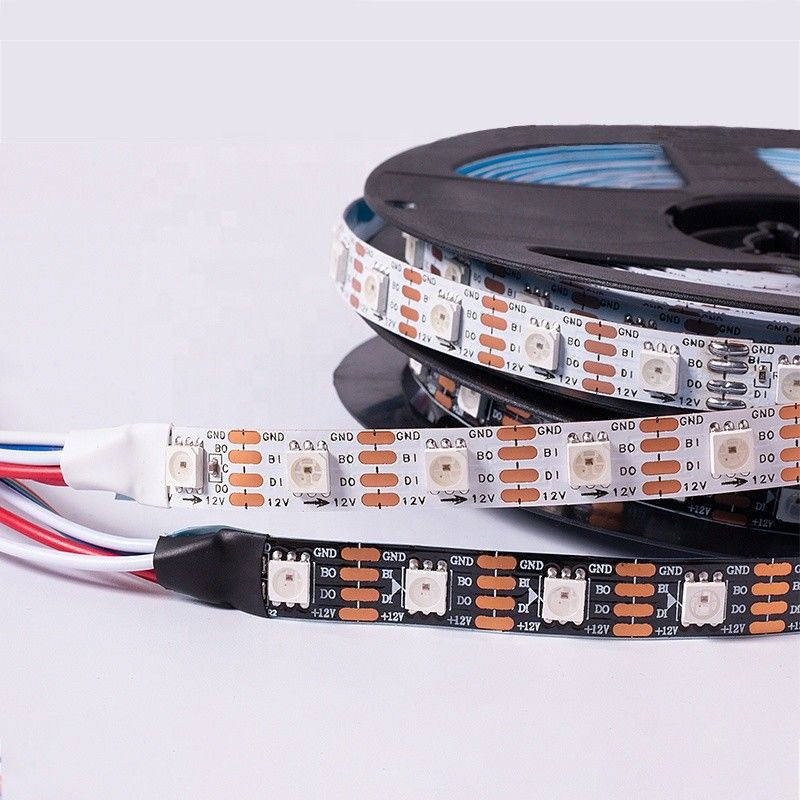

Every Pin Function

* 12V: Power Voltage, connect to “+12V”
* DO: Control data signal output
* DI: Control data signal input
* BO: Backup control data signal output
* BI: Backup control data signal input
* GND: Data &Power Grounding

8.What's the warranty of purchase?
We issue 24 months warranty toward every item shipped, exception may apply, please check the product page to confirm.
