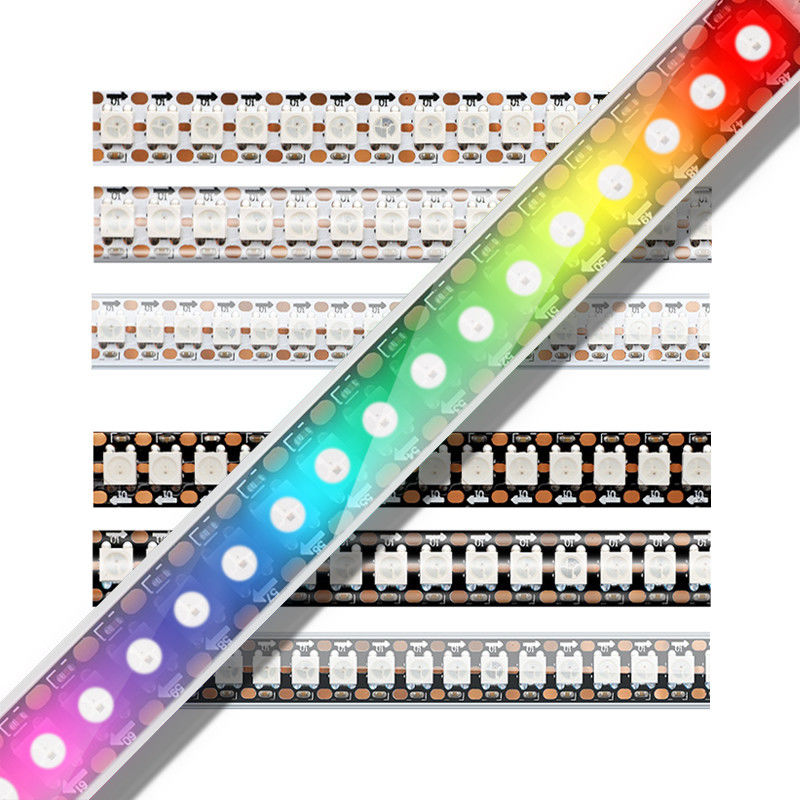

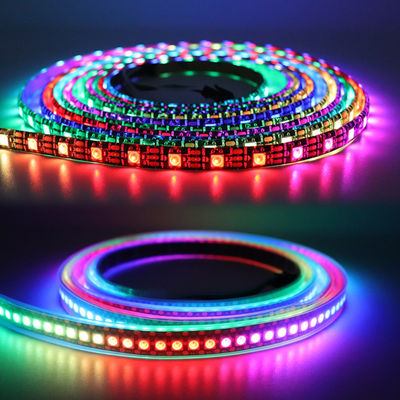

Flexible Digital LED Pixel Strip Light Smd 5050 RGB Inner IC Ws2812b

Flexible Digital LED Pixel Strip Light Smd 5050 RGB Inner IC Ws2812b

Flexible Digital LED Pixel Strip Light Smd 5050 RGB Inner IC Ws2812b
  • Flexible Digital LED Pixel Strip Light Smd 5050 RGB Inner IC Ws2812b
  • Flexible Digital LED Pixel Strip Light Smd 5050 RGB Inner IC Ws2812b
Product Details:
Place of Origin: China
Certification: CE
Model Number: 5V 2812B LED strip
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 500m/box
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Color Temperature(CCT): Colorful IP Rating: Customizable
Input Voltage(V): DC 5V Lighting Solutions Service: Lighting And Circuitry Design, Onsite Metering, Project Installation
Product Name: Flexible Led Strip Light LED Quantity: 144LEDs/m
Emitting Color: RGB Multi Colors LED Type: Smd 5050 Led Chip
IC Type: WS2812B Inner IC PCB Color: White/Black PCS
High Light:

Digital LED Pixel Strip Light

,

LED Pixel Strip Light Smd 5050

,

Ws2812b digital led strip

Smd 5050 Rgb Led Pixel Strip Light Inner Ic Ws2812b Full Color Digital Lighting Strip

RGB Full Color WS2812B LED Pixel Light Strip
Note:
Using 5VDC power supply. Higher than 5V will destroy it. If you need more data of WS2812 led strip, we will send it to you. The LEDs at the far end of the strip might be dimmer because of the added resistance and voltage drop that occurs during the current flows to that end of the strip. The solution is adding DC5V voltage every 16.4ft or 32ft according to the actual situation .

Feature function:

Cuttable Every LED can be cut off, LED strip still working after it is cut. Cut it to the length you just need.

Adhesive They(Only IP30, IP65) have double sides adhesive tapes on the back.There is no double side tape on IP67 , IP67 needs screws and clips to install. You can paste IP30/IP65 on the bookcase, TV, wine cabinet, ceiling, windowsill easily. -Colorful Red, Green, Blue. Dream full color. curtain-up/ flow water/raindrop jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software. -Long life Life span: more than 50000hrs -Waterproof level Non-waterproof (IP30) Silicone coating waterproof (IP65) Silicone coating sheathing waterproof (IP67) Glue-Pouring Waterproof(IP68)

Product Specification:

1.Product Type:Built-in IC LED Pixel Strip

2.IC type :WS2812B IC

3.Gray level: 256 -View angle: 120°

4.Input voltage: DC5V

5.Color: full color 24-bit

6.FPCB board color: Black/White

7.Power:0.1W~0.3W/LED

8.Standard Reel Length:5M/roll (16.4FT)

9.Model: WS2812 strip 5050rgb chips

10.Operating Temperature: -20 ~ +40°C

11.Led Qty: 300LEDs/16.4ft 300 pixels/16.4ft

12.Length x Widthx Height:IP30:5000mmx10mmx2mm IP65:5000mmx10mmx3mm IP67:5000mmx12mmx3.85mm

13.Waterproof level: IP30/IP65/IP67

14.Double Side Tape: IP30/IP65 . There is no double side tape on IP67.

15.Light up 1 color(red or green or blue) 0.1W/LED . Light up 2 colors (red+green) 0.2W/LED , Light up 3 colors (red+green+blue=mixed white) 0.3W/LED


Waterproof Level:
-IP30: Non-waterproof . Only work indoor .
-IP65: Silicone Coating Splash Proof .Dust prevention splash proofing designs. Only work indoor.
-IP67: Sheating Waterproof. Dust prevention water proofing designs. Can work outdoor but the 3 PIN connectors are non-waterproof. -IP68:Glue-Pouring Waterproof.Dust prevention water proofing designs. Can work underwater.3 PIN waterproof connector. IP68 needs to be customized.
Package List:
1*5M WS2812 LED Flexible Pixel Strip
1*3 pin male connector
Power adapter or controller is not included
Flexible Digital LED Pixel Strip Light Smd 5050 RGB Inner IC Ws2812b 0
Product Description
Flexible Digital LED Pixel Strip Light Smd 5050 RGB Inner IC Ws2812b 1
Flexible Digital LED Pixel Strip Light Smd 5050 RGB Inner IC Ws2812b 2



Common problem:
1. Why the end of LED strip looks like red or yellow when you light up maximum brightness White Light ?
A1: It is better to add DC5V voltage every 5M(16.4FT), because the LEDs at the far end of the strip might be dimmer due to the added resistance and voltage drop that occurs as the current flows to that end of the strip.
2. Why do I light up a few LEDs ?
A2: Please make sure you using the right power supply . For this LED strip , it is DC5V .Please don't use DC12V power supply for it . It will burn this LED strip . A2:The controller is defective . Please make sure the controller can work fine .
3. What are the functions of the two extra wires on two ends ,one is white ,one is red ?
A3: They are using to connected the DC5V power supply when the LED strip out of voltage . So we also call them voltage adding wires .
4. Can I connect them in series when I want to control 4 reels of them ?
A4: Yes , they can end to end connect many reels .
