| Place of Origin: | China |
| Certification: | CE |
| Model Number: | RGB Controller |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Neutral Carton Box Package<br>(One-stop lighting solution supporting services, welcome to consult) |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Warranty(Year): | 1 Year | Type: | Remote Control |
|---|---|---|---|
| Connection Mode: | Common Anode | Product Name: | 24-key RGB Aluminum Shell Controller |
| Input Voltage: | DC12V-DC24V | Output Current: | 12A/24A |
| Working Temperature: | 20-60 | Application: | RGB Led Strip Lighting |
| Remote Control Size: | L85*W50*H6mm | Controller Size: | L100*W60*H20mm |
| High Light: | 24 Key IR Remote Controller 3CH,Aluminum Case 24 keys ir controller,Common Anode 24 keys ir controller |
||

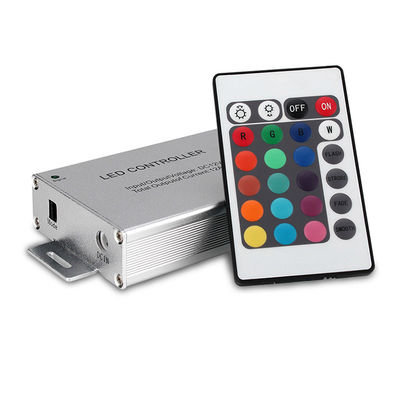

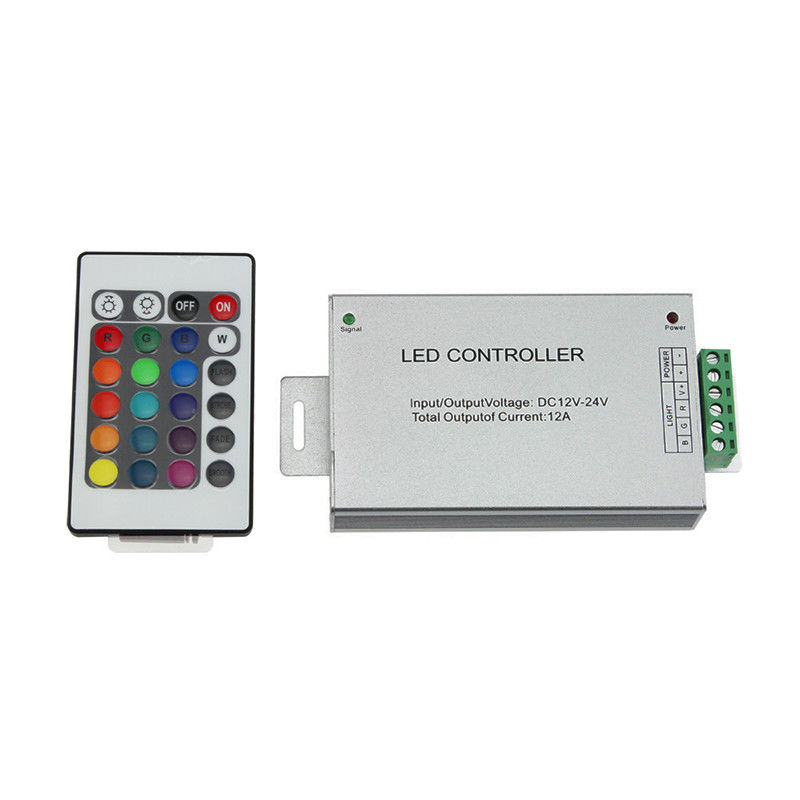

LED RGB Controller IR Remote 24 Key Aluminum Case DC12-24V 3CH For RGB Strip Light
IR Remote 24 Key Aluminum Case LED RGB Controller DC12-24V 12A/24A 3CH For RGB Strip Light
Basic parameters
Product name: 24-key RGB aluminum shell controller
Rated voltage: DC12-24V
Output current: 12A / 24A
Working temperature: -20~60°C
Connection method: common anode
Output: 3 circuits
Transmitting and receiving frequency: 433MHZ
Remote control size: L85*W50*H6mm
Controller size: L100*W60*H20mm
Weight: 126g
Feature Description
LED RGB controller is a general-purpose overall color-changing controller, using the current PWM (pulse width modulation) control technology,
This series of controllers is light and beautiful, with a variety of changing modes, which can realize changing effects such as gradient, jump, strobe, etc. The full-color gradient effect is delicate and soft, without flickering, and you can also choose static monochrome, adjustable change speed, LED brightness, pause and other functions.
Such controllers can be widely used to control RGB LED color lighting products.
|
item
|
value
|
|
Warranty(Year)
|
1-Year
|
|
Lighting solutions service
|
Lighting and circuitry design
|
|
Luminous Efficacy(lm/w)
|
30
|
|
Product Weight(kg)
|
0.126
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Megbox
|
|
Type
|
Remote Control
|
|
Max. Load Power
|
144W
|
|
Connection Mode
|
common anode
|
|
Product name
|
24-key RGB aluminum shell controller
|
|
Input Voltage
|
DC12V-DC24V
|
|
Output Current
|
12A/24A
|
|
Working temperature
|
20-60
|
|
Application
|
RGB Led Strip Lighting
|
|
Output
|
3 Circuits
|
|
Remote control size
|
L85*W50*H6mm
|
|
Controller size
|
L100*W60*H20mm
|
