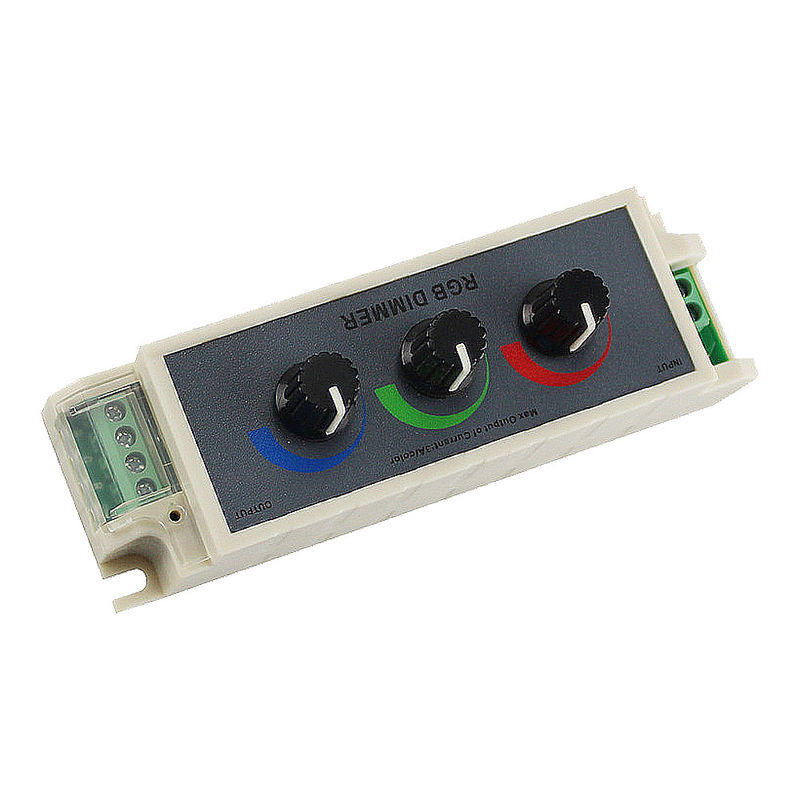

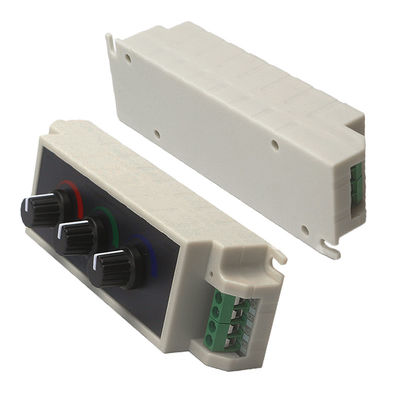

Name: 216W LED RGB Controller Dimmer With 3 Way Stepless Adjustable Switch
Brand: 216W LED RGB Controller Dimmer With 3 Way Stepless Adjustable Switch
SKU: RGB Dimmer Controller
Rating: 5 (161 reviews)

Home Products LED RGB Controller

216W LED RGB Controller Dimmer With 3 Way Stepless Adjustable Switch

Product Details:

Place of Origin:	China
Certification:	CE
Model Number:	RGB Dimmer Controller

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	100pcs/box
Delivery Time:	3-10days
Payment Terms:	T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Warranty(Year):	1 Year	Type:	Manual Switch
Max. Load Power:	216W	Product Name:	RGB Dimmer
Application:	RGB Led Strip Lighting	Input Voltage:	DC12V-DC24V
Output Current:	3A/CH	Output Power:	12V:<108W;24V:<216W
Output Signal:	Constant Voltage PWM Signal	Output Channel:	3 Channels RGB
Working Temperature:	20-60	Size:	L130W40H45mm
High Light:	216W LED RGB Controller , LED RGB Controller Dimmer , Stepless rgb led dimmer controller

DC12-24V RGB Dimmer LED RGB Controller 3 way Stepless Adjustable Switch for 5050 RGB Light

Product Description

DC12-24V RGB Dimmer LED Strip Lights Tape Controller 3 way Stepless Adjustable Switch for 2835 3528 5050 led light

Product introduction:

LED three-way dimmer adopts advanced PWM control technology to control various RGB lamps with LED as the light source, such as: RGB LED strips, LED modules, LED light string, etc.; The power supply is DC low voltage input mode, and the load output is +RGB Three circuits; It is a dimmer that can realize 0-100% stepless dimming. with knob Control mode, users can steplessly adjust the brightness of red, green and blue according to actual needs The brightness of the colors can be mixed to produce any color and brightness desired by the user.

Basic parameters:

◆ Input voltage: DC12-24V

◆ Output current: 3A*3CH

◆ Weight: About 90g

◆ Output power: 12V<108W; 24V216W

◆ Output channel: 3CH

◆ Controller size: L130*W40*H45mm

Specification

item	value
Warranty(Year)	1-Year
Lighting solutions service	Lighting and circuitry design
Product Weight(kg)	0.086
Place of Origin	China
	Guangdong
Brand Name	MegBox
Type	Manual Switch
Max. Load Power	216W
Connection Mode	common anode
Product name	RGB Dimmer
Application	RGB Led Strip Lighting
Input Voltage	DC12V-DC24V
Output Current	3A/CH
Output power	12V:<108W;24V:<216W
Output signal	Constant Voltage PWM Signal
Output channel	3 Channels RGB
Working temperature	20-60
Size	L130W40H45mm
Certificates	CE ROHS
