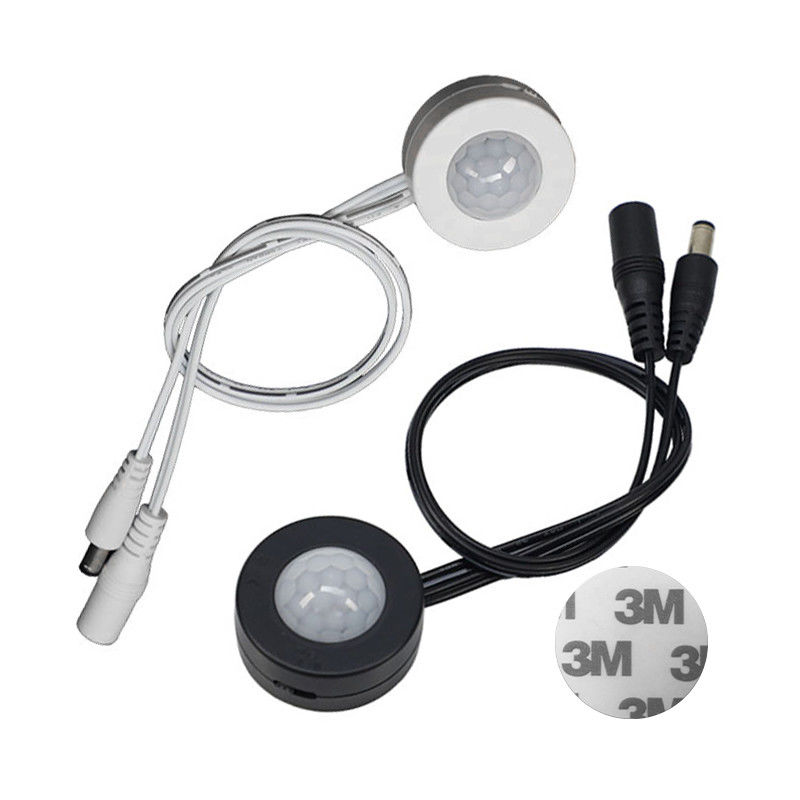

Body PIR Motion Sensor Switch Auto Delay For LED Strip Light

Body PIR Motion Sensor Switch Auto Delay For LED Strip Light

Body PIR Motion Sensor Switch Auto Delay For LED Strip Light
  • Body PIR Motion Sensor Switch Auto Delay For LED Strip Light
  • Body PIR Motion Sensor Switch Auto Delay For LED Strip Light
  • Body PIR Motion Sensor Switch Auto Delay For LED Strip Light
Product Details:
Place of Origin: China
Certification: CE
Model Number: Sensor switch
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 200pcs/box
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Warranty(Year): 1-Year Type: Sensor Switch
Max. Load Power: 60W Connection Mode: DC Port
Product Name: PIR Sensor Switch Application: Low Voltage LED Strip
Function: Photosensitive Switch ; Delay Off Adjustment Voltage: DC5V DC12V DC24V
Keyword: LED PIR Infrared Body Sensor Switch Controller Output Power: 5V 20W ; 12/24V 60W
Detecting Range: 0 . 2-3m Delay Time: 30s 60s 300s
High Light:

Body PIR Motion Sensor Switch

,

PIR Motion Sensor Switch Auto Delay

,

LED pir sensor switch

Body PIR Sensor Switch Motion Sensing Auto Delay For LED Strip Light

DC 5-24V PIR Sensor Switch
Place sensor directly to motion range of peopleLight will on when detect motion, light off whenthere is no motion detected within a delay time
Basic Features:
1. Automatically adapts input voltage DC5V-24V
2.Delay time is adjustable by switch
3.Light sensor is optional by switch
4.Small size with 140 degree large detectingangle

Specifications:

Model
PIR-DC524-5A
Voltage
DC 5V/12V/24V
Maximum load
5V 20W, 12/24V 60W
Detection range
0.2-3m
Delay time
30s 90s 300s
Function
The light is on when there is motion, and the light turns off in the delay time when motion is detected

Product Package:

PIR Sensor Switch*1PCS 3M Adhesive Backing*1PCS User Manual*1PCS
Product Description
Body PIR Motion Sensor Switch Auto Delay For LED Strip Light 0Body PIR Motion Sensor Switch Auto Delay For LED Strip Light 1
Body PIR Motion Sensor Switch Auto Delay For LED Strip Light 2
Body PIR Motion Sensor Switch Auto Delay For LED Strip Light 3
Body PIR Motion Sensor Switch Auto Delay For LED Strip Light 4
Body PIR Motion Sensor Switch Auto Delay For LED Strip Light 5
Body PIR Motion Sensor Switch Auto Delay For LED Strip Light 6
Body PIR Motion Sensor Switch Auto Delay For LED Strip Light 7
