| Place of Origin: | Guangdong, China |
| Certification: | CE |
| Model Number: | S-150-5 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in a standard unisex cardboard box |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Output Power: | 150W | Input Voltage: | AC110/220V ±15% |
|---|---|---|---|
| Output Voltage: | 5V | Output Frequency: | 50-60Hz |
| Output Current: | 30A | Product Name: | Chassis Switching Power Supply |
| Type: | AC DC Power Module Converter | Efficiency: | 92% |
| Weight: | 520g | Size: | L199*W98*H42mm |
| Protection: | OCP OVP SCP OPP | Protections: | Short Circuit Overtemp Overload Overvolt |
| High Light: | Regulated LED Driver Switching Power Supply,150W LED Driver Switching Power Supply |
||

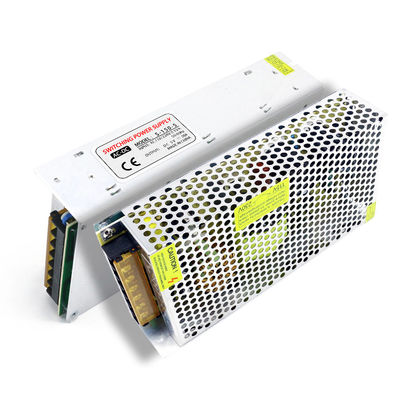

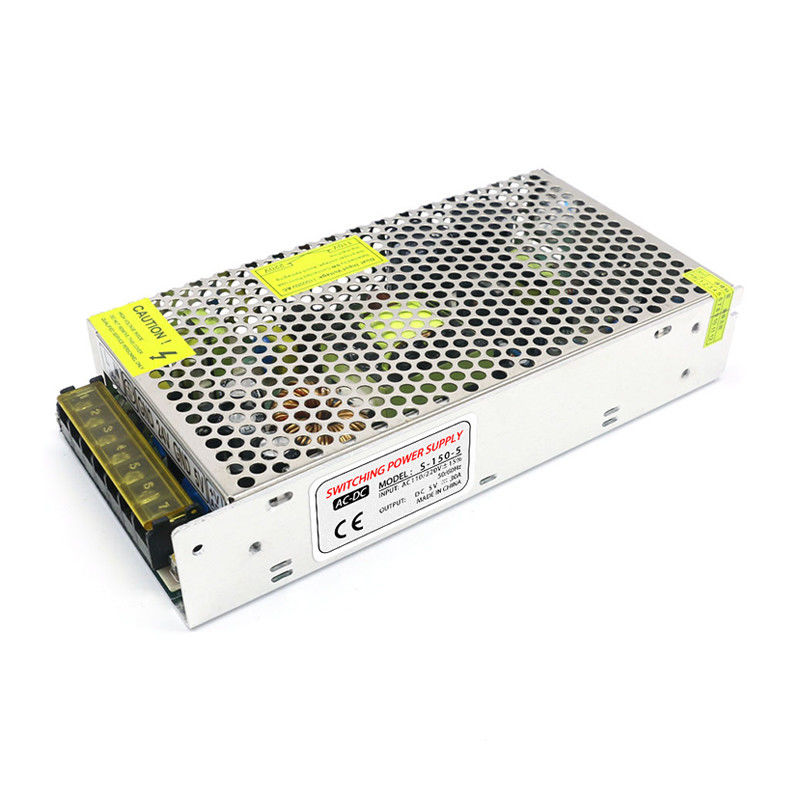

AC 110V or 220V to DC 5V 30A 150W Regulated Switching Power Supply Transformer Adapter LED Driver
AC to DC 5V 150W 30A LED Strip Driver Transformer
◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
Thickened metal shell
◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.
◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
Featured Components
High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;
Suitable for a variety of electronic devices
Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
|
Model |
S-150-5 |
|
AC input voltage range(V) |
AC110/220V±15% |
|
AC Input current(max) |
3.4A /AC220V;6.8/AC110V |
|
Frequency (Hz) |
50/60Hz |
|
Efficiency |
92% Typ(230VACFull Load) |
|
Inrush current(A) |
Cold-start 20A/230V |
|
Leakage current(mA) |
<3mA/240VAC |
|
Output Voltage(V) |
5V DC |
|
Voltage Regulation |
+10%,-10% |
|
Output Current(A) |
30A |
|
Current Range (A) |
0-30A |
|
Rated Power(W) |
150W |
|
Start time,hold-up time(ms) |
Ton≤1000ms,Td≥20ms @230Vac Full Load |
|
Rise time(ms) |
Typ:20ms @230Vac Full Load |
|
Ripple/Noise(mVp-p) |
120mVp-p |
|
working Temperature (°C) |
-40°C - +65°C(refer derating curve) |
|
Storage Temperature(°C) |
-20°C - +60°C |
|
Humidity |
20% - 90% RH non condensing |
|
Over voltage Protection |
>115%-135% Rated output voltage |
|
Over load Protection |
>105%-150% Auto recovery |
|
Short circuit Protection |
Latched |
|
Size L*W*H(mm) |
199*98*42mm |
|
Weight |
520g |
Easy to install and easy to use
Product Description
Specification
|
item |
value |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
Megbox |
|
Model Number |
S-150-5 |
|
Output Power |
150W |
|
Output Type |
Single |
|
Input Voltage |
AC110/220V ±15% |
|
Output Voltage |
5V |
|
Output Frequency |
50-60Hz |
|
Output Current |
30A |
|
Product Name |
Chassis Switching Power Supply |
|
Application |
LED Lighting |
|
Warranty |
2 Years |
|
Certification |
CE |
|
Type |
AC DC Power Module Converter |
|
Efficiency |
92% |
|
Weight |
520g |
|
Size |
L199*W98*H42mm |
|
Protection |
OCP OVP SCP OPP |
|
Protections |
Short Circuit Overtemp Overload Overvolt |
