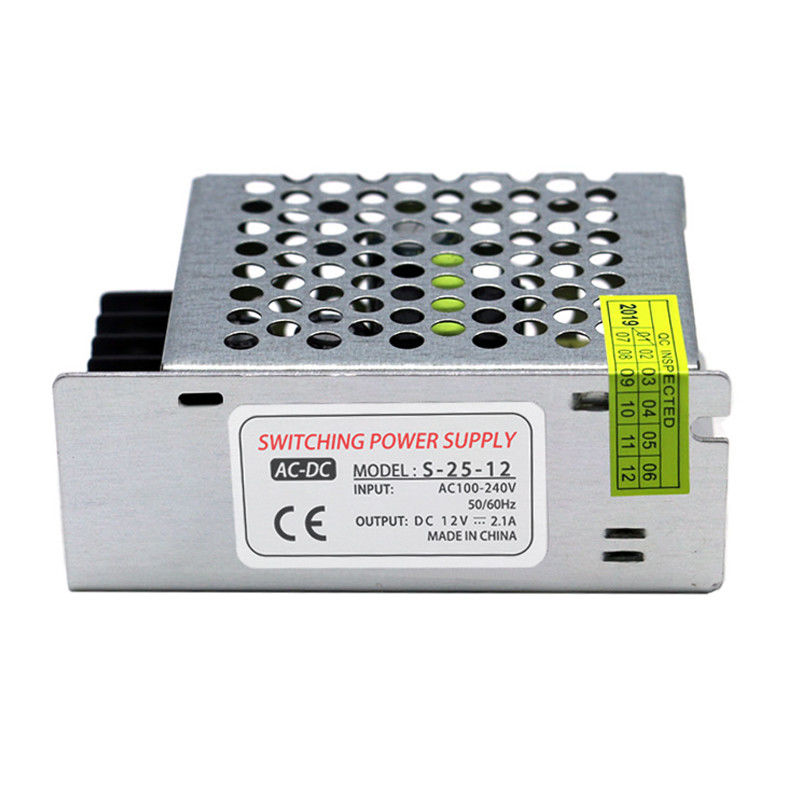

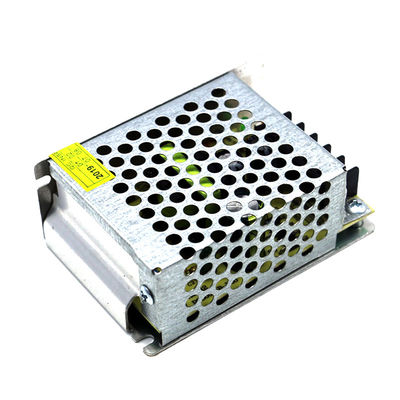

Chassis Switch Power Supply With Aluminum Case 12V 2.1A 25W

Chassis Switch Power Supply With Aluminum Case 12V 2.1A 25W

Chassis Switch Power Supply With Aluminum Case 12V 2.1A 25W
  • Chassis Switch Power Supply With Aluminum Case 12V 2.1A 25W
  • Chassis Switch Power Supply With Aluminum Case 12V 2.1A 25W
Product Details:
Place of Origin: Guangdong, China
Certification: CE
Model Number: S-25-12
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Neutral Carton box Package<br>(One-stop Lighting Power Supply Solution Matching Service, welcome to consult)
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output Power: 25W Input Voltage: AC100-240V
Output Voltage: 12V Output Frequency: 50-60Hz
Product Name: Chassis Switching Power Supply Type: AC DC Power Module Converter
Efficiency: 90% Weight: 130g
Size: L85*W58*H32
High Light:

Chassis Switch Power Supply

,

25W Switch Power Supply

,

2.1A chassis power supply

AC 100-240V To DC 12V 2.1A 25W Switching Power Supply Aluminum Case Converter Constant Voltage Transformer LED Driver





AC to DC 12V 25W 2.1A LED Strip Driver Transformer

◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

Thickened metal shell

◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.

◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.

Featured Components

High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;

Chassis Switch Power Supply With Aluminum Case 12V 2.1A 25W 0

Chassis Switch Power Supply With Aluminum Case 12V 2.1A 25W 1

Suitable for a variety of electronic devices

Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

Model

S-25-12

AC input voltage range(V)

AC 100-240V

AC Input current(max)

6A /115V,3A /230V

Frequency (Hz)

50Hz/60Hz

Efficiency

90% Typ(230VACFull Load)

Inrush current(A)

Cold-start 20A/230V

Leakage current(mA)

<3mA/240VAC

Output Voltage(V)

12VDC

Voltage Regulation

+10%,-10%

Output Current(A)

2.1A

Current Range (A)

0-2.1A

Rated Power(W)

25W

Start time,hold-up time(ms)

Ton≤1000ms,Td≥20ms @230Vac Full Load

Rise time(ms)

Typ:20ms @230Vac Full Load

Ripple/Noise(mVp-p)

120mVp-p

working Temperature (°C)

-40°C - +65°C(refer derating curve)

Storage Temperature(°C)

-20°C - +60°C

Humidity

20% - 90% RH non condensing

Over voltage Protection

>115%-135% Rated output voltage

Over load Protection

>105%-150% Auto recovery

Short circuit Protection

Latched

Size L*W*H(mm)

85*58*32

Weight

130g

Easy to install and easy to use

Chassis Switch Power Supply With Aluminum Case 12V 2.1A 25W 2

Product Description

Chassis Switch Power Supply With Aluminum Case 12V 2.1A 25W 3

Chassis Switch Power Supply With Aluminum Case 12V 2.1A 25W 4

Chassis Switch Power Supply With Aluminum Case 12V 2.1A 25W 5

Chassis Switch Power Supply With Aluminum Case 12V 2.1A 25W 6

Specification

item

value

Place of Origin

China



Guangdong

Brand Name

Megbox

Model Number

S-25-12

Output Power

25W

Output Type

Single

Input Voltage

AC100-240V

Output Voltage

12V

Output Frequency

50-60Hz

Output Current

2.1A

Product Name

Chassis Switching Power Supply

Application

LED Lighting

Warranty

2 Years

Certification

CE

Type

AC DC Power Module Converter

Efficiency

90%

Weight

130g

Size

L85*W58*H32

Protection

OCP OVP SCP OPP

Protections

Short Circuit Overtemp Overload Overvolt
