Name: Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W
Brand: Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W
SKU: S-120-12
Rating: 4.9 (148 reviews)

Home Products Switch Power Supply

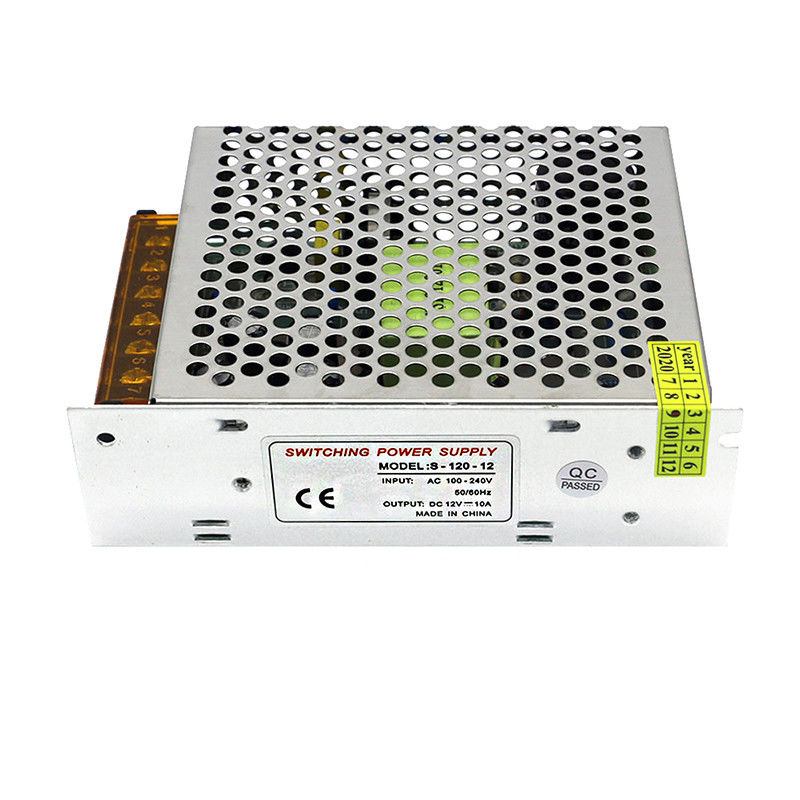

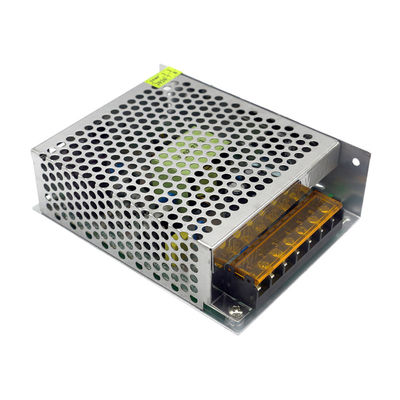

Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W

Product Details:

Place of Origin:	Guangdong, China
Certification:	CE
Model Number:	S-120-12

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Neutral Carton box Package<br>(One-stop Lighting Power Supply Solution Matching Service, welcome to consult)
Delivery Time:	3-10days
Payment Terms:	T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Output Power:	120W	Input Voltage:	AC100V-240V
Output Voltage:	12V	Output Frequency:	50-60Hz
Output Current:	10A	Product Name:	Chassis Switching Power Supply
Warranty:	2 Years	Type:	AC DC Power Module Converter
Efficiency:	89%	Weight:	0.34KG
Size:	L130W98H42	Protection:	OCP OVP SCP OPP
High Light:	Regulated Switch Power Supply , 120W Switch Power Supply

100-240V AC to DC 12V 10A 120W Regulated Switching Power Supply Aluminum Case Converter Transformer

Constant voltage DC switching power supply 12V 10A 120W monitoring power supply industrial power supply led light bar power supply

◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

Thickened metal shell

◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.

◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.

Featured Components

High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;

Suitable for a variety of electronic devices

Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

Model	S-100-12
Regulation voltage	10%
weight	0.34KG
Output current	0-10 (A)
Voltage regulation	10 (%)
Output ripple noise	120mVp-p
rated power	120W
Output Power	120W (W)
The output voltage	12V (V)
Working temperature	-40℃～65℃
working frequency	47-63 (HZ)
work efficiency	89 (%)
Output Voltage Accuracy	98 (%)
Types of	AC/DC power supply
Input voltage	AC100-240 (V)
certified product	ce ROHS
Cooling Fan Type	Free cooling
Transistor connection	half bridge
series	Indoor series
Protection class	IP20
Dimensions	L130W98H42(mm)
Scope of application	LED, security, industrial control, mechanical equipment
Modulation	Pulse width modulation (PWM) type
Installation method	screw installation
Reset method	self-healing
Overload protection	yes (>105%-150% self-recovery)
Overvoltage protection	Yes (>115%-135% rated output voltage)
Short circuit protection	Yes (lock protection)

Easy to install and easy to use

Product Description

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	Megbox
Model Number	S-120-12
Output Power	120W
Output Type	Single
Input Voltage	AC100V-240V
Output Voltage	12V
Output Frequency	50-60Hz
Output Current	10A
Product Name	Chassis Switching Power Supply
Application	LED Lighting
Warranty	2 Years
Certification	CE
Type	AC DC Power Module Converter
Efficiency	89%
Weight	0.34KG
Size	L130W98H42
Protection	OCP OVP SCP OPP
Protections	Short Circuit Overtemp Overload Overvolt
