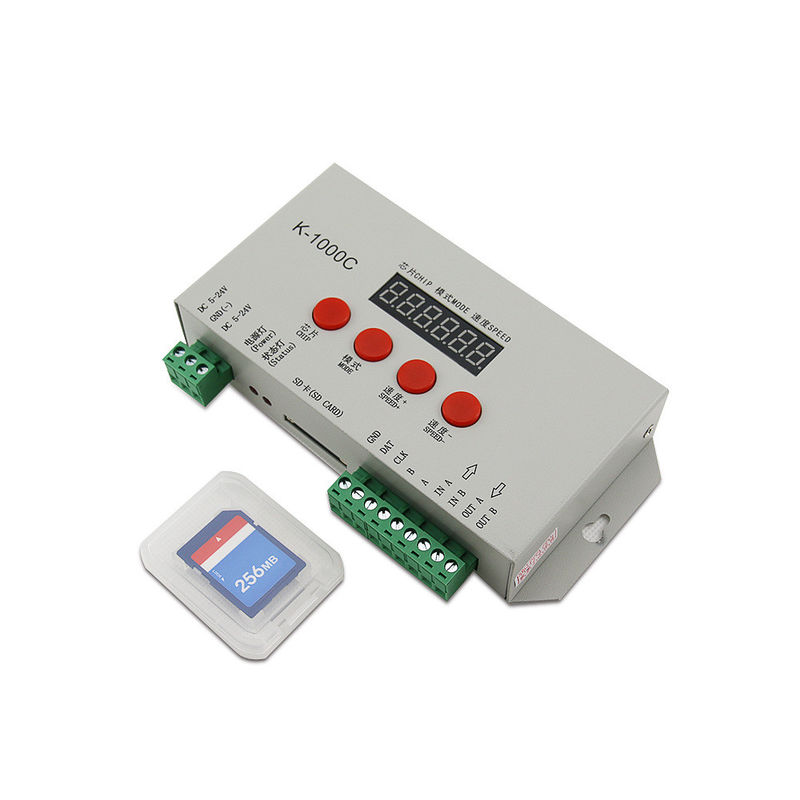

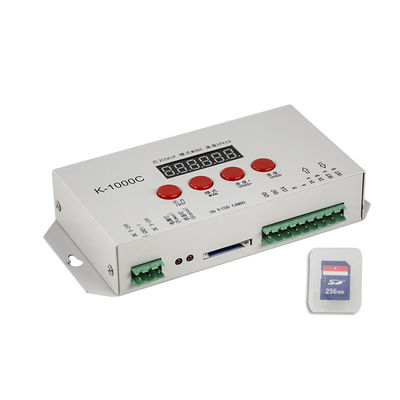

K1000C LED Pixel Tape Controller For DC 5V 24V WS2812B WS2811 Strip Light

1. This K-1000c sd card led controller 2048 pixels is evolution of our classic T-1000s sd card controller.

2. Add a display that customers more prefer.

3. Improve functions that support load lamp is 4 channels (RGBW) pixels, enhanced 485 TTL and 485 differential (DMX) signal output.

4. Controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, more flexible and convenient.
5. Comes with a 256MB SD card included. This version support 2GB sd card that old ones couldn't.

6. For the DMX lighting IC, the controller comes with write address function; In addition, with use of 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.

7. K-1000C (Upgraded version of T-1000S),SD card LED pixel controller;off-line;SPI signal output;2048 pixels controlled comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.

Note: To copy files to SD card, you must first format to the SD card. SD card must be formatted as "FAT" format

T-1000C Controller Introduction
1,32 level-65536 level grey scale control, software Gamma correction processing.
2,Support various point, line and surface light sources, support various rules, shaped processing.
3,Controller single port output, can take 1024 lights.
4,Multiple cascade synchronous offline control, playback content stored in the SD card.
5,The T-1000C stores up to 16 files, just copy multiple files to the SD card in sequence.
6,The effects stored in the SD card should be named in order: 00_1.led, 01_1.led, 02_1.led.
7,Compatible with single and double wire ICs, when connecting a single wire IC to the fixture, there is no need to connect the CLK clock line.
Note:

1. When the K-1000S port is loaded with 512 lamps, the playback speed is up to 30 fps, when the port is loaded with more than 512/1024 lamps, the frame rate decreases automatically with the number of lamps.

2. For ICs controlling 32 levels of grey, the frame rate is up to 30 fps when the individual port is controlled with less than 1024. The frame rate can be 30 fps for a single port with less than 512 pixels for a 256 level grayscale IC.

Wiring options
1. the T-1000C controller can be used in multiple cascades;
2. the T-1000C is a single port output and can take up to 1024/2048 dot pixels;
3. When controlling a single wire IC simply connect the DAT and GND of the controller to the DAT and GND of the luminaire correspondingly. When controlling a two-wire IC it is sufficient to connect the DAT.CLK and GND of the controller to the DAT, CLK and GND of the luminaire. 4.
4. When using a differential signal (485 signal), the output signals A and B of the controller are connected to the signal line A (DAT+) and the signal line B (DAT-) of the luminaire respectively.
5. When the voltage required by the controller is the same as the voltage required by the luminaire. The controller and the luminaire can be connected directly to the same power supply. When the voltage required by the controller and the luminaire are different, the luminaire and the controller can each be powered by a separate power supply.

Product features

Note:

1. K-1000C (Upgraded version of T-1000S),SD card LED pixel controller;off-line;SPI signal output;2048 pixels controlled 512 lights, the playback speed of up to 30 frames / sec, the port more than 512 lights, the frame rate with the increase in the number of lights automatically reduced.

2.Strong recommend you to connect the led pixel lights quantity no more than 1024 pixels per T1000s pixel controller.

3. Special issue,when you make LED video display, recommend the led pixels quantity no more than 512 pixels.

Compatible with wide range of addressable LED chipsets:

• TM1803/TM1804/TM1809/TM1812/TM1825/TM1826/TM1829/TA9909/TA9912/TM1913/TM1914

• UCS1903/UCS1912/UCS2903/UCS2909/UCS2912/UCS3903/UCS3912/UCS8903/UCS8904

• LPD6803/LPD1886/LPD1882/LPD1889/LPD6812/LPD6813/LPD8806/LPD8809

• SM16716/SM16726/SM16711/SM16703

• WS2811/WS2801/WS2803/WS2812B/WS2813

• LX1003/LX2003/LX2006

• INK1003/INK1009

• P9813/P9816/D705/9883/P9823

• SK6812/SK6812RGBW/SK6822/SK6812mini/SK9822

• APA102/APA102C/APA104/APA2020

• TLS3001/TLS3008/TLS3100

• DMX 500K/DMX 250K-CZF
