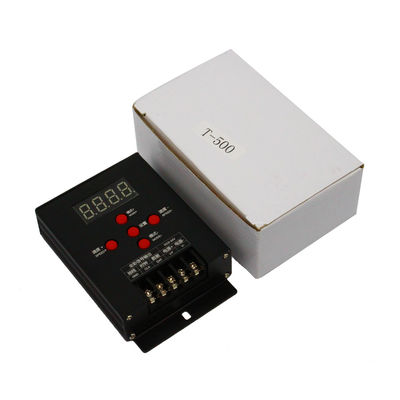

Multi Chip LED Pixel Controller , RGB Magic Lighting Remote Controller

Product introduction:

◆ Support almost all types of 5-24V single-wire or two-wire LED driver ICs

◆ Control the optical signal line first, generally single-line IC (for TM1803, TM1804, TM1809) only connect to DAT and GND, and two-line IC (for LPD6803, SM16716) connect to DAT, CLK and GND

◆ Control up to 512 pixels

◆ Adjustable brightness, 200 patterns, vivid and beautiful

◆ DC5V-24V wide working voltage to prevent power reverse connection

◆ User settings save

Basic parameters:

◆ Input voltage: DC5-24V

◆ Size: L97*W60*H20mm

◆ Packing size: L105*W67*H39mm

◆ Net weight: 83g

◆ Gross weight: 103g

◆ Output type: TTL/SPI

◆ Number of control ICs: 512 pixels

◆ Connection method: common anode

◆ Wiring Instructions: GND, CLK, DAT are LED lights, V+, V- are power

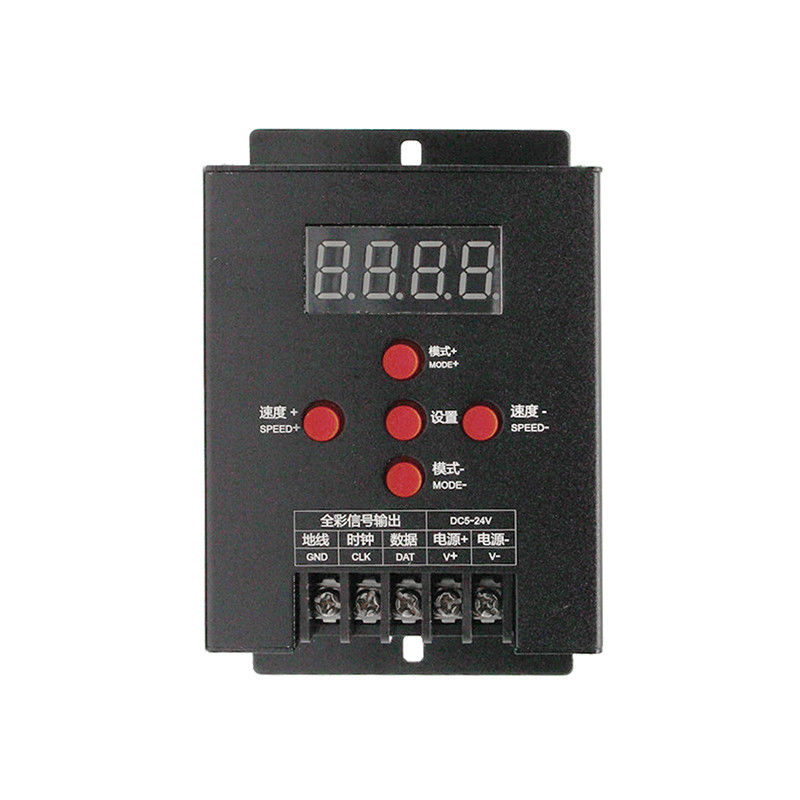

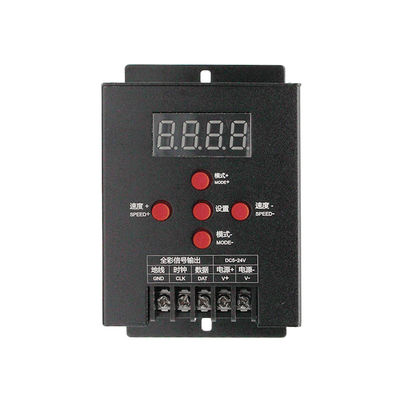

①: Digital display

②: Setting key. Press this key to enter the state of selecting IC model, press the mode + key Mode-key can select different IC, IC model number will be displayed on the digital tube, controllable The IC models are: LPD6803, LPD1109, LPD1882, LPD1886, P9813, SM16716, TM1803, TM1903, TM1829, WS2811, WS2801; Press the setting button again, enter the setting of the number of ICs at this time, press the mode + button Or the mode-key can increase or decrease the number of ICs, which will be displayed on the digital display. Display: L-001, the maximum number of ICs can be selected: 512; line to save the setting information, and the interface returns to the change effect mode: P-Oxx.

③④: Switch the change mode, at this time, the digital display interface shows: P-OXX The corresponding value will increase or decrease

⑤⑥: Adjust the change speed, at this time the digital display interface shows: SP-XXX The corresponding value will increase or decrease
