| Place of Origin: | China |
| Certification: | CE |
| Model Number: | pixel controller |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 100PCS/Carton box. |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Warranty(Year): | 1-Year | Lighting Solutions Service: | Lighting And Circuitry Design, Onsite Metering, Project Installation |
|---|---|---|---|
| Luminous Efficacy(lm/w): | 30 | Product Weight（kg）: | 0.15 |
| Type: | Remote Control | Max. Load Power: | 192W |
| Connection Mode: | Common Anode | Product Dimensions:: | 8.8 X 4.5 X 2.2 Cm |
| Material:: | Plastic | Working Temperature:: | -20℃ ~ 60℃ |
| Working Current:: | 18mA ~ 45mA | Remote Distance:: | 20 Meters |
| High Light: | Smart SP107E LED Music Controller,SP107E LED Music Controller BT,Symphony sp107e music controller |
||
SP107E Smart Led Pixel Controller BT Music Symphony Full Color Light With 2811/2812 Controller Dc5-24
| SP107E BT Music SPI Pixel light controller |
1. App control:
Both IOS version and Android OS version are available.
Requires IOS version 10.0 or later;
Requires Android OS version 4.4 or later;
Search”Led Chord”in App Store or Google pay or scan this QR code to download and install the App:
2. Instructions:
APP Operations:
1. Make sure you have turned on BT on your phone;
2. Open the APP, drag to refresh the device list, select device name “SP107E” to connect the controller, once connected you will able to rename your controller;
3. Select RGB order and IC type;
4. Adjust the pixel number;
3.Press ENTER.
Audio Input:
There are two ways to input the audio signal on SP107E, AUX IN, and Build-IN microphone;
AUX IN: Plug the supplied audio split cable into the “AUX IN” jack, connect the audio output source(MP3, Phone or tablet…)and the speaker(or headset), the controller will automatically switch into AUX input mode;
MIC: Disconnect the audio cable, the controller will automatically switch into microphone input mode.

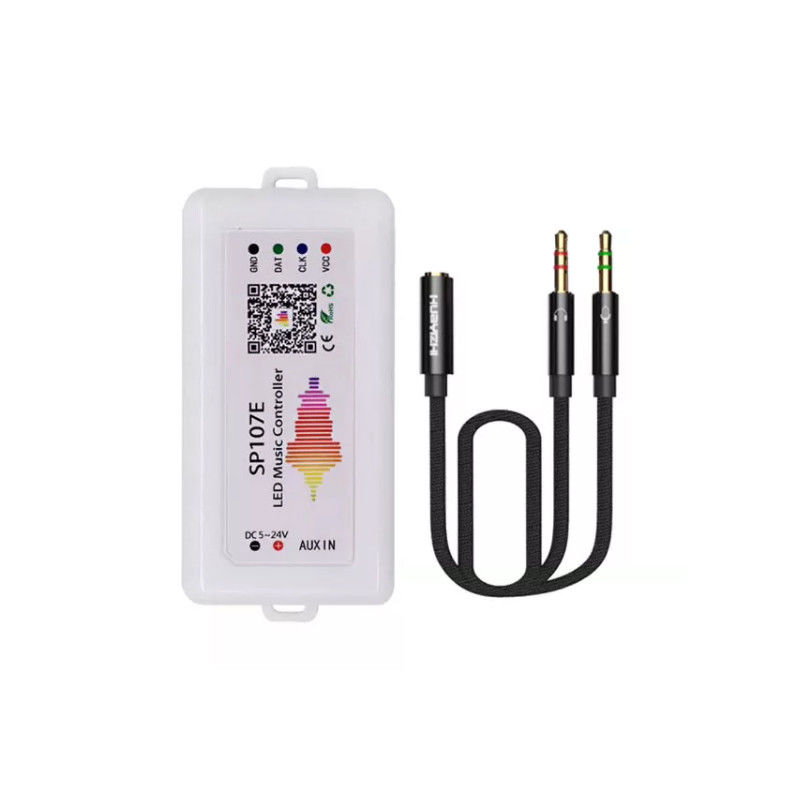

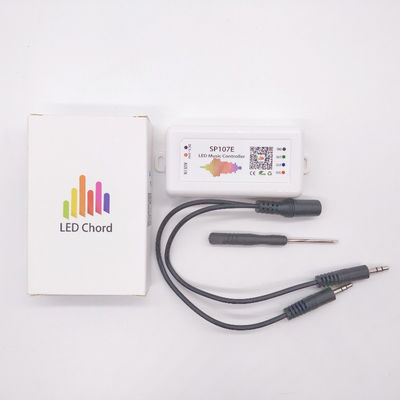

Package includes:
1x SP107E music BT controller
1x User manual
(strip and power supply not include)
