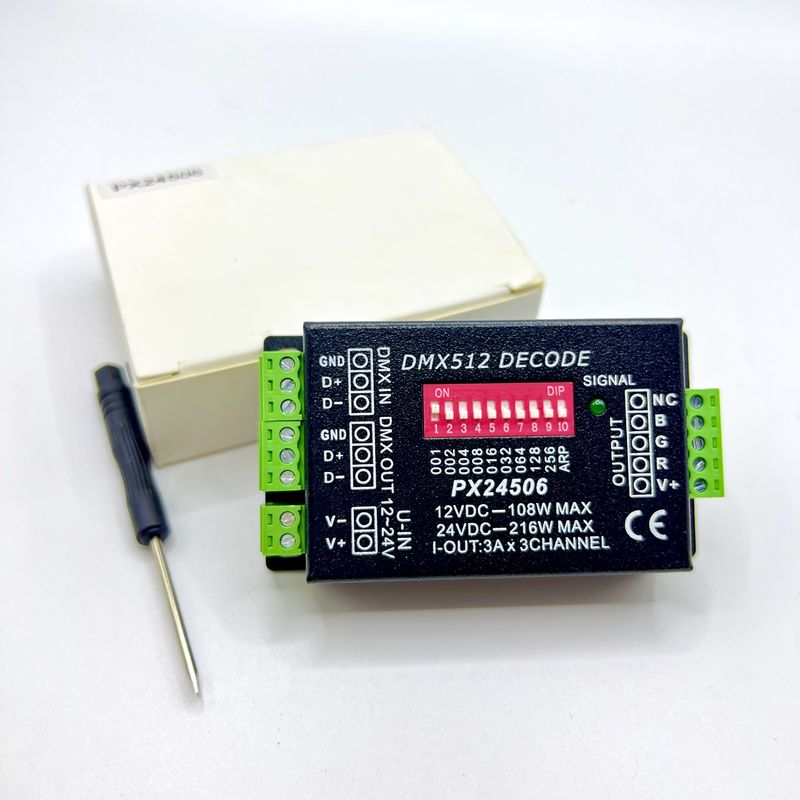

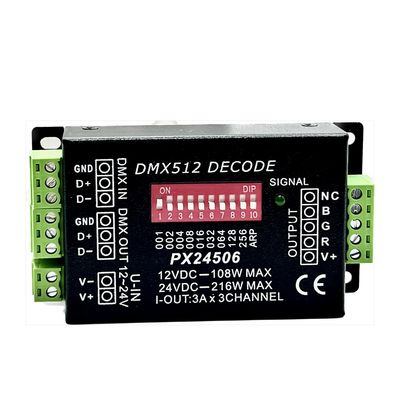

DC 12V LED DMX Decoder , Px24506 Dmx512 Decoder For RGB Strip Lights

PX24506 DMX512 Decoder Driver Amplifier Controller For RGB LED Strip Module 9A DMX512 Amplifier DC12V-24V
Product introduction:

1.Compliant with DMX512/1990;

2.256-level brightness, full-color RGB color control;

3.Each channel output of 3 channels maximum 3A;

4.Control system, can realize synchronous control;

5.Convert the internationally popular DMX512/1990 standard digital control signal into PWM constant voltage drive;

6.Light color control light 1~3 colors;

7.The DMX address can be set freely (the DMX address can be set by the DIP switch);

8.3-channel output, 256-level grayscale for each channel, full-color drive control;

9.10 RGB self-test modes, 8-level change speed;

10.It can be connected to a power expander to amplify the power. Basic parameters:

11. Input voltage: DC12-24V

12. Output channel: 3 channels

13.Output current: 3A*3CH

14. Size: L86*W51*H18mm

15.Weight: about 110g

16.Input signal: DMX-512/1990 digital signal

17. Output type: PWM

18. Grayscale: 256 levels
