Name: DMX512 RGB RGBW LED DMX Decoder With Engineering Sub Controller
Brand: DMX512 RGB RGBW LED DMX Decoder With Engineering Sub Controller
SKU: LED DMX512 decoder
Rating: 4.8 (197 reviews)

Home Products LED DMX Decoder

DMX512 RGB RGBW LED DMX Decoder With Engineering Sub Controller

Product Details:

Place of Origin:	China
Certification:	CE
Model Number:	LED DMX512 decoder

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	50pcs/box
Delivery Time:	3-10days
Payment Terms:	T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Warranty(Year):	1-Year	Lighting Solutions Service:	Lighting And Circuitry Design, Project Installation
Type:	MANUAL SWITCH	Connection Mode:	Common Anode
Application:	DMX Lighting Solution	Input Voltage:	DC12-24V
Output Current:	3CH/RGB;4CH/RGBW	Output Signal:	Constant Voltage PWM Signal
Accessories:	A Pair Of XLR Plugs	Output Power:	12V<384;24V<768W
Working Temperature:	20-60	Input Signal:	DMX-512/ Digital Signal
High Light:	LED DMX Decoder RGBW , Engineering LED DMX Decoder , RGB DMX 512 Decoder

LED DMX Decoder DMX512 RGB RGBW Strip Light Stage Decoder Music Controller

Music DMX512 decoder RGB RGBW strip light Stage decoder controller

DMX512 decoder controller 8A*4 RGBW 8A*3 RGB stage light with engineering sub-controller

Product introduction:

The DMX decoder adopts advanced computer control chip, receives the DMX-512 standard digital control signal widely used in the world and converts it into a PWM controller signal to drive the LED; it can be connected with the DMX digital console, and the decoder can be added to continuously expand the output channel to Realize more dimming or various program change effects. When the decoder is not connected to the DMX console, the unit can be used as a synchronous controller, which can control multiple decoders and LED lights synchronously. Basic

parameters:

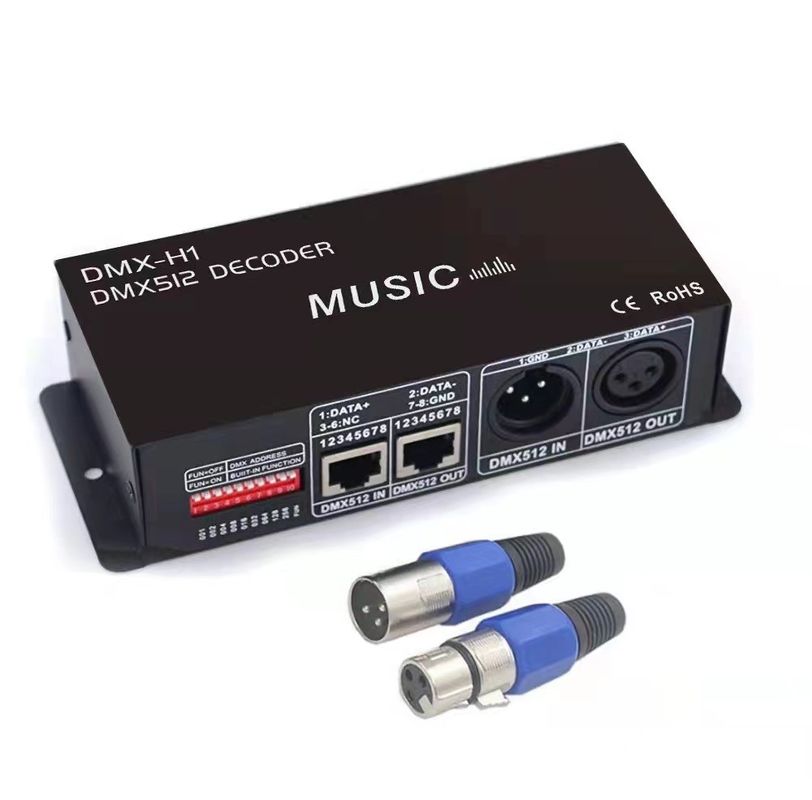

● Product Model: DMX-H1 (3CH:RGB)

● Operating temperature: -20-60℃

● Power supply voltage: 12V~24V

● Output current:4A/ch, 8A/ch per channel rated current;(optional)

● Output power:12V:<192W/384W, 24V:<384W/768W

● Controller size: L166xW67×H41mm

● Box size: L176×W84×H50mm

● Net weight: 360g ● Gross weight: 408g

● Channels: 3-way-R-G-B

● DMX512 standard: DMX512/1990

● Accessories: pair of XLR plugs

Product Description:
