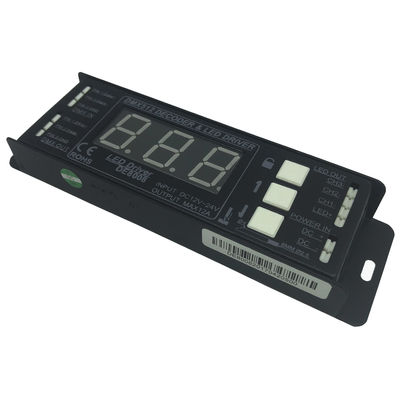

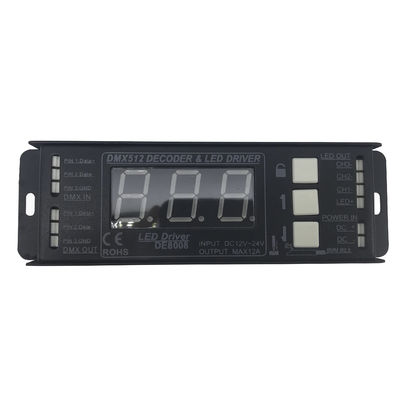

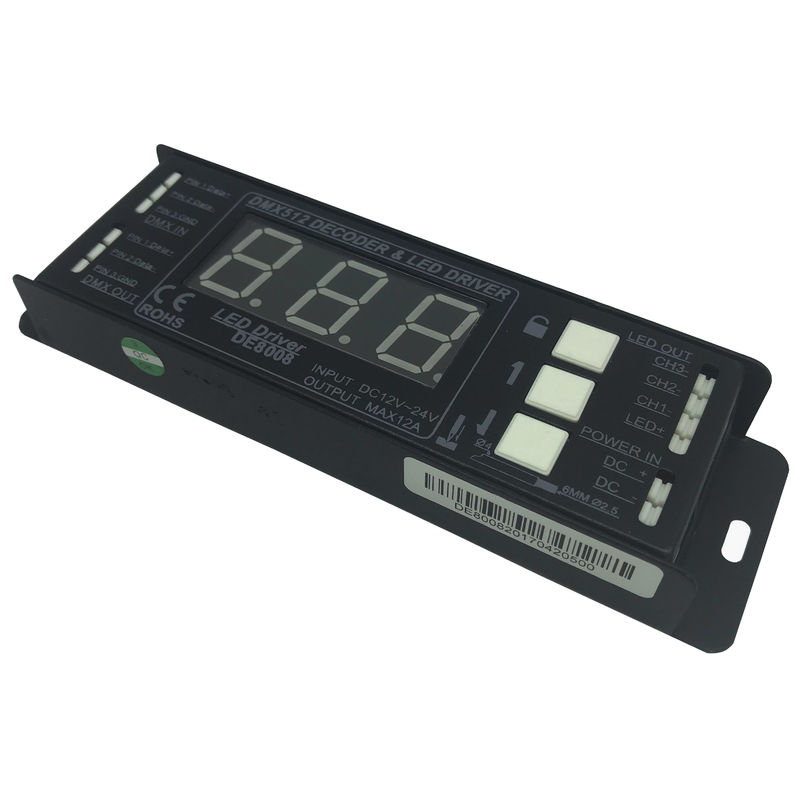

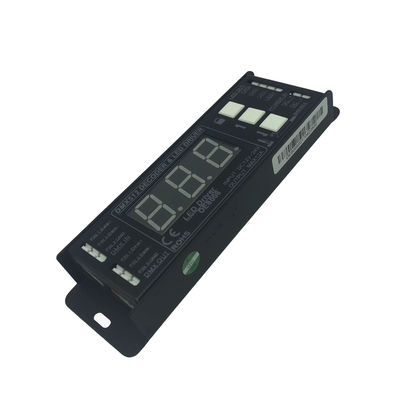

LED DMX Decoder RGB 3 Channel DMX512 Sub-Controller 12V LED Strip Light Belt Synchroniser

SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 3 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Features:

• Meets DMX512/1990.
• 256-levels brightness,full-color with driver controls.
• Power without flashing, low jitter free.
• 3 output channels, single channel maximum 5A output drive, total output is less than 20A.
• Can achieve asynchronous color changes effect under working with controller.
• With the light color selected mechanism, and be able to control the light with 1~4 colors.
• Setting the DMX address freely.
• Modularizing and can be matched with different LED module neatly.
• Through the LCD1602 screen display menu.
