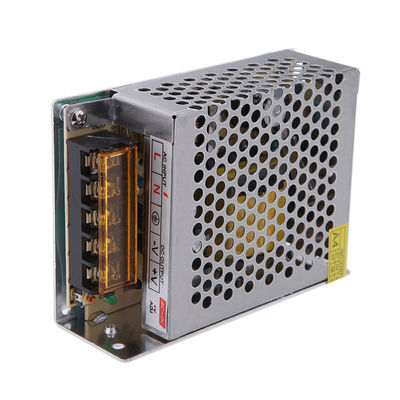

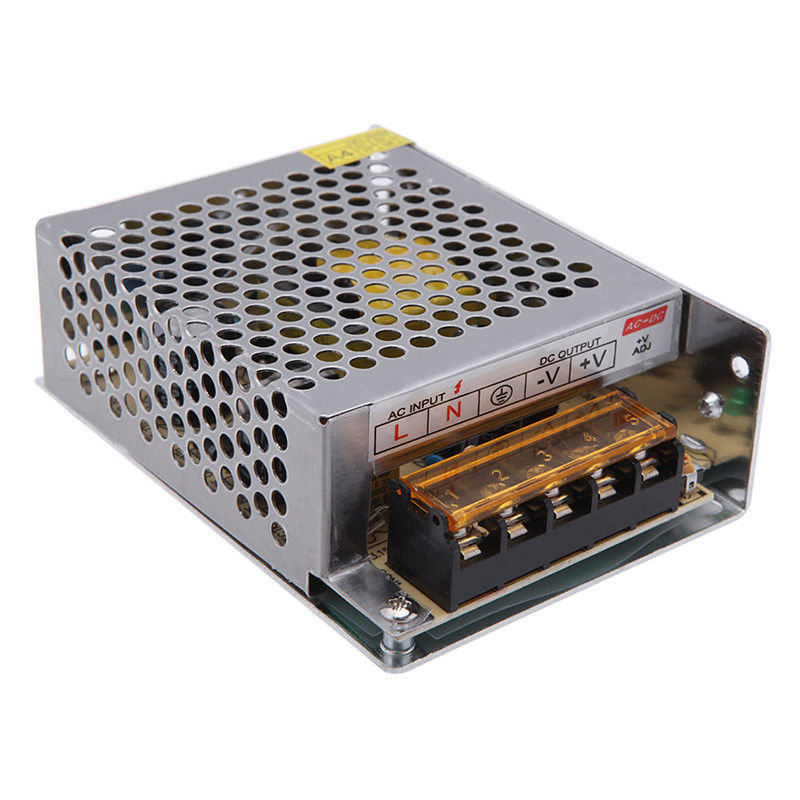

AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip

AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip

AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip
  • AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip
  • AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip
Product Details:
Place of Origin: Guangdong, China
Certification: CE
Model Number: S-50-5-10A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 3 layers of safety packaging
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output Power: 50W Input Voltage: AC100-240V
Output Voltage: 5V Product Name: Swtiching Power
Application: LED Strip Efficiency: 95%
Size: 110*78*35(mm) Name: AC DC Power Module Converter

Model

S-50-5-10A

AC input voltage range(V)

AC 100-240V

Input current(A)

2.17A/115VAC;1.08A/230VAC

Frequency (Hz)

50/60Hz

Efficiency

89%(230VACFull Load)

Inrush current(A)

cold start 20A/115V AC 40A/230VAC

Leakage current(mA)

<3.5mA/240VAC

Output Voltage(V)

+5VDC

Voltage Regulation

±10%

Output Current(A)

10A

Current Range (A)

0-10A

Rated Power(W)

50W

Start time, hold-up time(ms)

300ms/230VAC 800ms,/115VAC at full load

Rise time(ms)

50ms at Full Load

Ripple/Noise(MVP-p)

120mVp-p

working Temperature (°C)

-10 centidegree to+60 centidegree

Storage Temperature(°C)

-20 centidegree to+85 centidegree

Humidity

20% to90%RH non condensing

Over voltage Protection

>115%-135% Rated output voltage

Over load Protection

>105%-150% Auto recovery

Short circuit Protection

Latched

Size L*W*H(mm)

110*78*35

Weight

195g

Product Description

AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip 0



AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip 1

AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip 2

AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip 3

AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip 4

Specification

item

value

Place of Origin

China



Guangdong

Brand Name

Megbox

Model Number

S-50-5-10A

Output Power

50W

Output Type

Single

Input Voltage

AC100-240V

Output Voltage

5V

Output Frequency

50~60(HZ)

Output Current

0-10(A)

Product Name

Swtiching Power

Application

LED Strip

Warranty

2 Years

Certification

CE

Type

Constant Voltage

Efficiency

95%

Weight

0.3kg

Size

110*78*35(mm)

Protections

OPP OVP SCP OCP

Name

AC DC Power Module Converter
