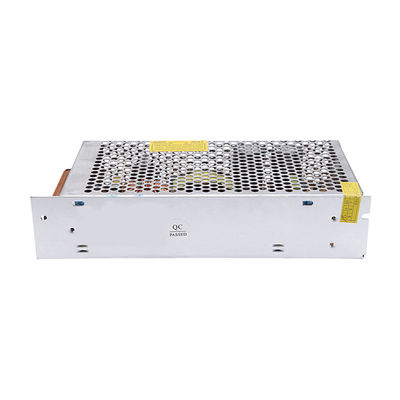

Name: 12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching
Brand: 12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching
SKU: S-200-12
Rating: 5 (163 reviews)

Home Products Switch Power Supply

12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching

Product Details:

Place of Origin:	Guangdong, China
Certification:	CE
Model Number:	S-200-12

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	30pcs/box
Delivery Time:	3-10days
Payment Terms:	T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Output Power:	200W	Input Voltage:	AC110V-220V
Output Voltage:	12V	Output Frequency:	50-60Hz
Output Current:	16.7A	Product Name:	Chassis Switching Power Supply
Efficiency:	95%	Weight:	0.55KG
Size:	L199W98H42mm	Protections:	Short Circuit Overtemp Overload Overvolt
High Light:	200W chassis mount power supply , 16.7A chassis mount power supply

AC110V AC220V to DC 12V 16.7A 200W Regulated Switching Power Supply Transformer Adapter

AC 110V 220V to DC 12V 16.7A 200W Universal Regulated Switching Power Transformer Adapter LED Driver for LED Light Bar, CCTV Camera System, Radio

About this project:

◆ The output voltage is adjustable by 10%.

◆ Safety function: automatic overload cut-off, over-voltage cut-off, automatic thermal cut-off, short circuit protection.

◆ Voltage consistency: there is no voltage fluctuation during power-on, transmission, reception, and power-off.

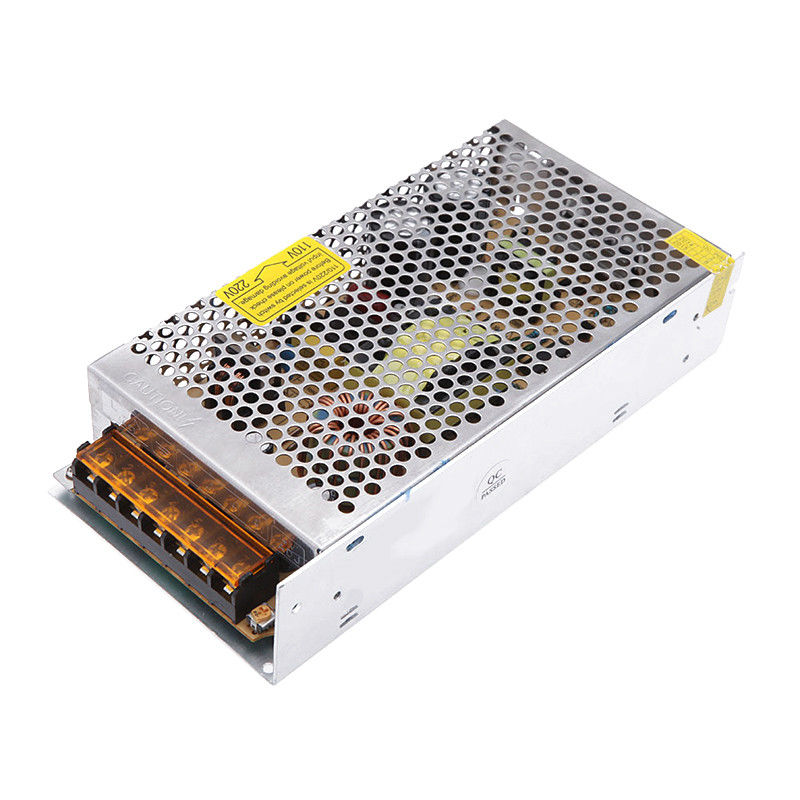

Thickened metal shell

The shell is made of high-quality metal material with good pressure resistance. Heat dissipation is fast. Durable and Corrosion Resistant ◆ The metal shell has more openings, and the heat dissipation is more efficient.

Featured Components

Selected high-quality components, sufficient power. Stable output, energy saving and safer

Suitable for a variety of electronic devices

Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

model	S-200-12
Dimensions	L199W98H42mm
Modulation	Pulse width modulation (PWM) type
Regulation voltage	Adjustable 15%
Input voltage range	AC 100V～120V/200V～240V
Output ripple noise	120mVp-p
Output Power	200 (W)
Output Voltage Accuracy	98 (%)
The output voltage	12 (V)
Output current	0-16.7A (A)
Scope of application	LED lighting
Cooling Fan Type	automatic cooling
Types of	AC/DC power supply
Transistor connection	single-ended
work efficiency	95 (%)
Operating temperature	-20~+55(℃)
working frequency	50/60 (HZ)
Reset method	Power-off reset
Load Regulation	15 (%)
Protection class	IP20
rated power	200W
Power phase number	2
Voltage regulation	10 (%)
certified product	ce

Easy to install and easy to use

Product Description

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	Megbox
Model Number	S-200-12
Output Power	200W
Output Type	Single
Input Voltage	AC110V-220V
Output Voltage	12V
Output Frequency	50-60Hz
Output Current	16.7
Product Name	Chassis Switching Power Supply
Application	LED Lighting
Warranty	2 Years
Certification	CE
Type	AC DC Power Module Converter
Efficiency	95%
Weight	0.55KG
Size	L199W98H42mm
Protection	OCP OVP SCP OPP
Protections	Short Circuit Overtemp Overload Overvolt
