| Place of Origin: | Guangdong, China |
| Certification: | CE |
| Model Number: | S-60-24 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Neutral Carton box Package<br>(One-stop lighting solution supporting services, welcome to consult) |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Output Power: | 60W | Input Voltage: | AC100V-240V |
|---|---|---|---|
| Output Voltage: | 24V | Output Frequency: | 50-60Hz |
| Output Current: | 2.5A | Product Name: | Chassis Switching Power Supply |
| Type: | AC DC Power Module Converter | Weight: | 240g |
| Size: | L110*W78*H36(mm) | Protection: | OCP OVP SCP OPP |
| High Light: | 2.5A Regulated Switching Power Supply,60W Regulated Switching Power Supply |
||

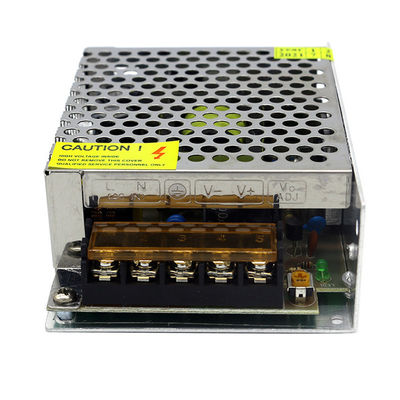

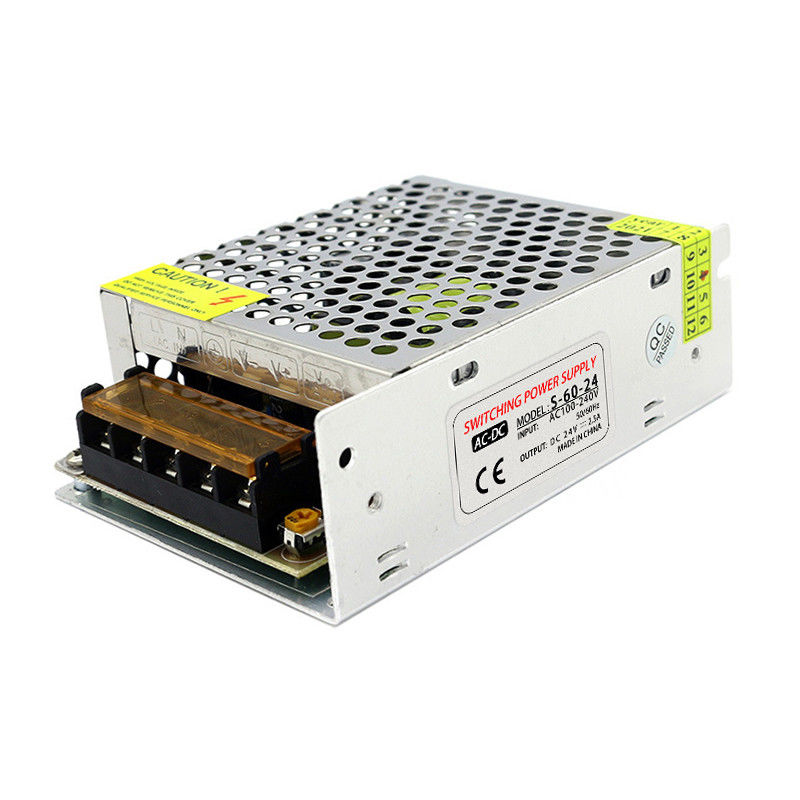

Regulated Switching Power Supply Converter AC 100-240V to DC 24V 2.5A 60W LED Driver Aluminum Case Transformer
◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
Thickened metal shell
◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.
◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
Featured Components
High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;
Suitable for a variety of electronic devices
Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
|
Model |
S-60-24 |
|
DC output,current |
24V 2.5A |
|
Wave and noise |
100mvp-p |
|
Inlet stability |
±0.5% |
|
Load stability |
±0.5% |
|
Efficiency |
87% |
|
Adjustable range for DC voltage |
±10% |
|
Input current |
12.0A/110V 1.0A/230VAC |
|
AC input voltage range |
90~260VAC , 47~63Hz , 240~373VDC |
|
AC Inrush current |
Cold-start current 15A/115VAC 30A/230V |
|
Setup, rise, hold up time |
200ms,100ms,30ms |
|
Withstand voltage |
I/P-O/P: 1.5KVAC; I/P-F/G: 1.5KVAC; O/P-F/G: 0.5KVAC (1 Min) |
|
Isolation resistance |
I/P-O/P, I/P-F/G, O/P-F/G, 500VDC/100MΩ |
|
Working temperature and humidity |
`-10°C~+60°C, 20%~90%RH |
|
EMC standards |
GB9254 EN55022 ClassA |
|
Over voltage Protection |
>115%-135%Rated output voltage |
|
Over load Protection |
>105%-150%Auto recovery |
|
Short circuit Protection |
Latched |
|
Size L*W*H(mm) |
110 *78*36mm |
|
Weight |
240g |
Easy to install and easy to use
Product Description
Specification
|
item |
value |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
Megbox |
|
Model Number |
S-60-24 |
|
Output Power |
60W |
|
Output Type |
Single |
|
Input Voltage |
AC100V-240V |
|
Output Voltage |
24V |
|
Output Frequency |
50-60Hz |
|
Output Current |
2.5A |
|
Product Name |
Chassis Switching Power Supply |
|
Application |
LED Lighting |
|
Warranty |
2 Years |
|
Certification |
CE |
|
Type |
AC DC Power Module Converter |
|
Efficiency |
83% |
|
Weight |
240g |
|
Size |
L110*W78*H36(mm) |
|
Protection |
OCP OVP SCP OPP |
|
Material |
Metal Shell |
|
|
|
|
