| Place of Origin: | Guangdong, China |
| Certification: | CE |
| Model Number: | S-120-24 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | 50pcs/box |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Output Power: | 120W | Input Voltage: | AC100V-240V |
|---|---|---|---|
| Output Voltage: | 24V | Output Frequency: | 50-60Hz |
| Output Current: | 5A | Product Name: | Chassis Switching Power Supply |
| Type: | AC DC Power Module Converter | Efficiency: | 87% |
| High Light: | Aluminum Power Supply Switching 24V 5A,150W Power Supply Switching 24V 5A,CE 24v 5a switching power supply |
||

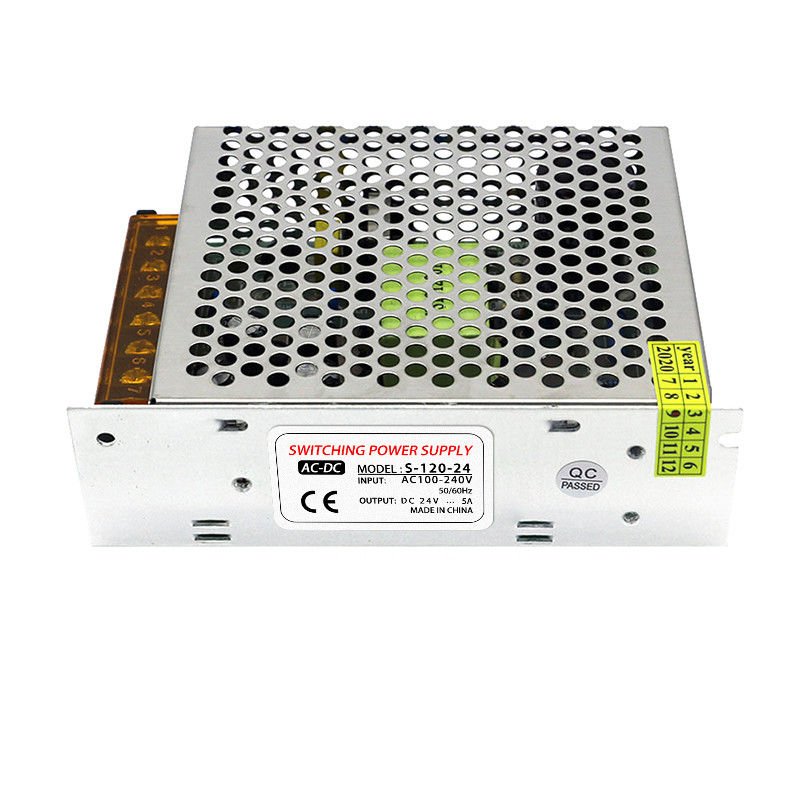

150W 24V 5A Switching Power Supply Aluminum Transformer LED Driver
DC24V 120W 5A Switching Power Supply AC to DC 24V Transformer LED Lighting Driver
◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

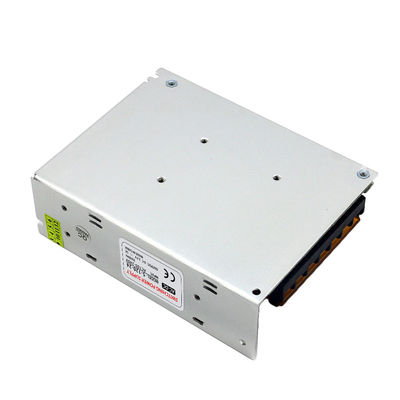

Thickened metal shell
◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.
◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
Featured Components
High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;
Suitable for a variety of electronic devices
Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
|
Model |
S-120-24 |
|
AC input voltage range(V) |
AC100-240V |
|
AC Input current(max) |
0.55A /AC220V;1.1A/AC110V |
|
Frequency (Hz) |
50/60Hz |
|
Efficiency |
87% Typ(230VACFull Load) |
|
Inrush current(A) |
Cold-start 20A/230V |
|
Leakage current(mA) |
<3mA/240VAC |
|
Output Voltage(V) |
24V DC |
|
Voltage Range |
24V±0.5 |
|
Output Current(A) |
5A |
|
Current Range (A) |
0-5A |
|
Rated Power(W) |
120W |
|
Start time,hold-up time(ms) |
Ton≤1000ms,Td≥20ms @230Vac Full Load |
|
Rise time(ms) |
Typ:20ms @230Vac Full Load |
|
Ripple/Noise(mVp-p) |
120mVp-p |
|
working Temperature (°C) |
-40°C - +65°C(refer derating curve) |
|
Storage Temperature(°C) |
-20°C - +60°C |
|
Humidity |
20% - 90% RH non condensing |
|
Over voltage Protection |
>115%-135% Rated output voltage |
|
Over load Protection |
>105%-150% Auto recovery |
|
Short circuit Protection |
Latched |
|
Size L*W*H(mm) |
129*99*40 |
|
Weight |
0.35KG |
Easy to install and easy to use
Product Description
