36 Channel Intelligent Pixel LED Stair Controller For LED Light

Product Details:

Place of Origin:	China
Certification:	CE
Model Number:	Smart Stair Light Controller

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	3 layers of safety packaging
Delivery Time:	3-10days
Payment Terms:	T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Warranty(Year):	1-Year	Type:	Stage Lighting Control System
Max. Load Power:	1800W	Connection Mode:	Positive And Negative Link
Product Name:	Step Light Controller	Input Voltage:	DC5-24V
Channel::	36CH(DC5V-24V Single Color Strip)	Weight:	About 0.9KG

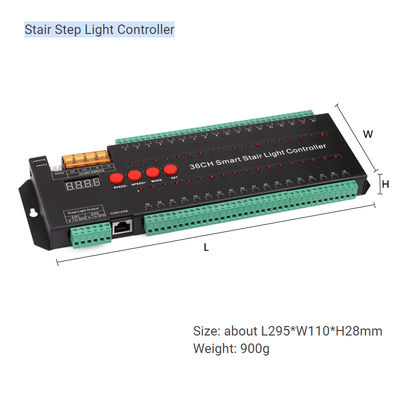

Controller Size:	L295W110H28mm	Working Temperature:	-30~85
Connection Series:	1-36 (DC5-24V Monochromatic Light)	Light Bar Control Range:	1-800 Pixels
High Light:	Intelligent Pixel LED Stair Controller , 36Channel Pixel LED Stair Controller

36 Channel Intelligent Stair Light Controller For Led Light With Induction Stair Step Flow Controller

36CH Step Light Controller

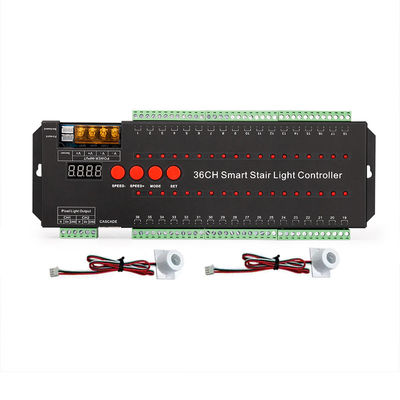

◆36-channel multi-function LED staircase controller with two sensors, which can drive 2 kinds of LED strips, one is a strip that supports a single-line chip via SPI, such as general-purpose 1903, 1812, 16703 WS2811 and other full-color pixel LED lights, the control system is in the lower left corner of D01, GND, DO2, and GND have two parallel output terminals, which can be connected to the left and right sides of the staircase light. The output terminals on both sides of the controller are 36 monochromatic light strips , The number of light strips is adjustable, the function setting of the sensor controller is selected by the button, and the setting is displayed by the left 4-digit digital tube.
◆Important Note: The positive and negative poles of the power input of the controller cannot be reversed, the red line V+ is connected to the positive pole of the switching power supply, and the blue (or black) V- is connected Turn off the negative pole of the power supply.

Specification

Warranty(Year)	1-Year
Lighting solutions service	Lighting and circuitry design, Project Installation
Luminous Efficacy(lm/w)	18
Product Weight(kg)	0.9
Place of Origin	China
Type	Stage lighting control system
Max. Load Power	1800W
Connection Mode	Positive and negative link
Product name	step light controller
Application	Step Light Control
Input Voltage	DC5-24V
Output power	5V ~ 350W
	12V ~ 700W
	24V ~ 1400W
Maximum current	<2A*36CH
Weight	about 0.9KG
Controller size	L295W110H28mm
Working temperature	-30~85
Connection series	1-36 (DC5-24V monochromatic light)
Light bar control range	1-800 pixels
