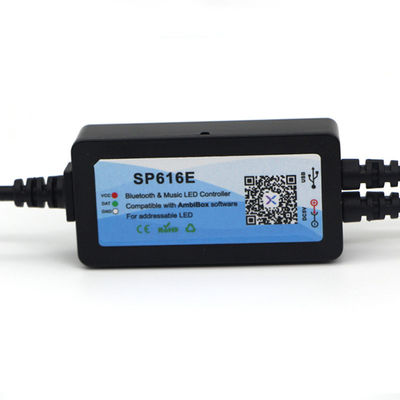

SP616E Bluetooth LED Pixel Controller For Computer Backlight

SP616E Bluetooth LED Pixel Controller Compatible Music Ambibox Monitor Usb Computer Backlight

SP616E BT Compatible Music Symphony Monitor USB Computer Backlight PC Screen Box For DC5V WS2812B LED Strip
Summary
1. Support mobile app, Windows PC ambibox software control
2. Support automatic connection of equipment when app starts and automatic reconnection of equipment after disconnection
3. Support multiple device grouping control
4. Support a variety of music collection modes: Mobile microphone, player streaming and onboard microphone;
5. Support to modify equipment name, calibrate RGB channel sequence, timer and other functions
6. It supports the common single line LED drive C in the market, supports the drive of 600 pixels
7, built-in 142 dynamic modes, supports the effect length adjustment of dynamic mode, dynamic mode collection, and the dynamic
mode and collection mode can cycle independently
8. Built in 18 music modes, supporting music mode effect length adjustment, sensitivity adjustment, color selection and music mode
cycle
9. Dc5 voltage input, the power supply has anti reverse connection function; Power down save setting parameter function.
Features:
1. Supports both APP control and compatible with AmbiBox software;
2. Support automatic device connection and automatic re-connection when the APP turns on;
3. Support multiple devices grouping control;
4. Multiple sound collection methods: phone mic, player streaming, on-board mic;
5. Support modifying the device name, calibrate the RGB channel sequence, and timer function;
6. Compatible with the common single-line LED driver IC on the market, can drive up to 600 pixels;
7. Built-in 142 dynamic effects, effect length adjustable, with favour effects collecting function;
8. Built-in 18 music effects, effect length adjustable, sensitivity adjustable;
9. DC5V voltage input, the power supply has anti-reverse connection function;
10. Automatic saving function for setting parameters.

App Functions:
SP616E supports being controlled by APP, botth IOS and Android version are available;
Apple devices are required IOS 10.0 or later, Android devices are required Android 4.4 or later;
you can search "SceneX" in the App Store or Google Play to find the app,
or scan the QR code to download and install.

App Operations:
• Open the App and click theon the upper right corner of the homepage, add devices by scanning for devices, or creating a group of
multiple added devices;
Click on an individual device in the device list to access the control page to control the device individually;
Click on a group in the group list to enter the control page to control all devices in the group at the same time;
• User can modify the device name and calibrate the RGB channel sequence by clickingon the upper right corner of the operation
page.
• User can set up to five timing events by clicking onin the upper right corner, please note that all set timing events will be
deleted when the controller is powered off.
• In the effects page, there are a variety of music effects and non-music effects, users can set speed, brightness color and
effect length for a specific effect.
Note: User can find more detailed information and help by clicking thebutton in the top right corner.

Work with AmbiBox Software:
Visit AmbiBox website to download and install the AmbiBox software
(http://www.ambibox.ru/en/index.php/Download_AmbiBox)
Download and install the USB driver.
(http://www.wch-ic.com/downloads/CH341SER_ZIP.html)

1. Open the software, select the Intelligent backlight display page, click More settings to make the software display more setting
options.
2. Check Use backlight.
3. In the Mode list, select the LED light mode you want.
(There are 5 display modes: Screen capture:
Static background, Dynamic background, Color music and Plugins)
4. Choose the way to capture the screen; (here use windows 8 mode)
5. Select AmbiLED in the Device list.
6. Select the correct port number in the Port list.
(You can find the comport number under Windows Device Manager)
7. Select the correct RGB order in the Order of color list.
(For example, the RGB order of WS2812B is GRB)
8. Set the number of LEDs used in the Number of zones list.
9. Click Wizard capture zones to set the layout of the LEDs.
10. Click Save settings to save the current settings.

Button Functions:
On/Off button : Turning on or off the LED light;
Mode button M : Switching between the AmbiBox and build-in effects;
Build-in effects Switching button S : Switching the build-in effects.

Technical Parameters:
Working temperature:-20℃~60℃
Dimensions:60mm*30mm*14mm
(not including the wires)Working voltage:DC5V
Operating current:16mA

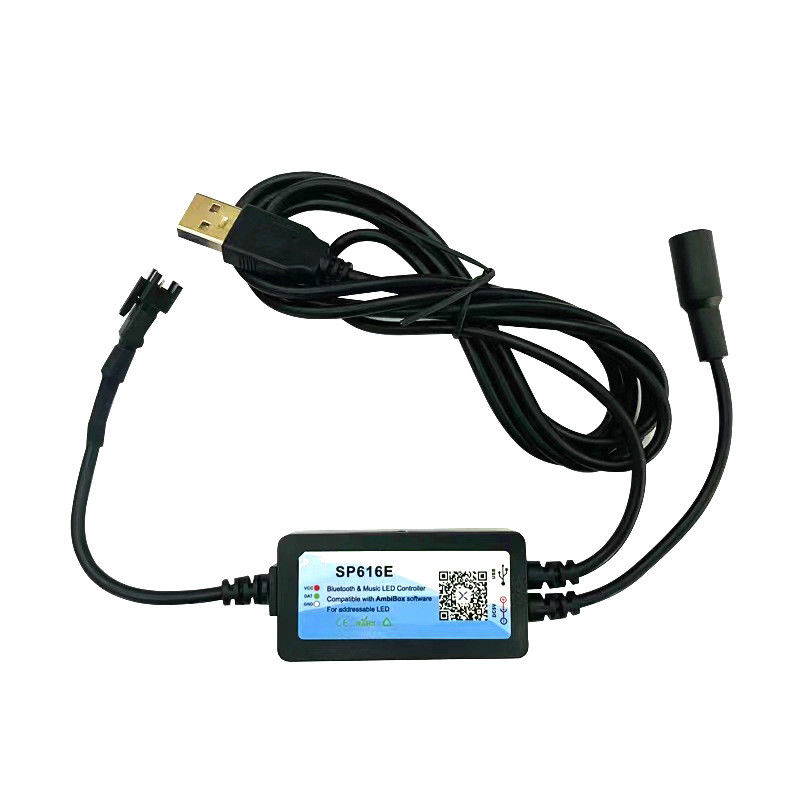

Package include: 1 x DC5V SP616E LED Controller
