24W Customized LED Pixel Controller With RF Remote Control 133 Mode

24W Customized LED Pixel Controller With RF Remote Control 133 Mode

24W Customized LED Pixel Controller With RF Remote Control 133 Mode
  • 24W Customized LED Pixel Controller With RF Remote Control 133 Mode
  • 24W Customized LED Pixel Controller With RF Remote Control 133 Mode
Product Details:
Place of Origin: China
Certification: CE
Model Number: pixel controller
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 100pcs/box
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Warranty(Year): 2-Year Lighting Solutions Service: Lighting And Circuitry Design, Project Installation
Product Weight(kg): 0.138 Type: Remote Control
Max. Load Power: 24W Connection Mode: Common Anode
Product Name: LED Pixel Controller Application: 6803/WS2811LED Light Strip
Voltage: DC12V Output Power: 2W
Output: Sets Of SPI Signals Remote Control Size: L85*W35*H15mm
Receiver Size: L92*W55*H25mm Remote Control Distance: About 20m
Support IC: 6803/2811 Keyword: 6803 Symphony Light Strip
High Light:

Customized LED Pixel Controller

,

24W LED Pixel Controller

LED Pixel Controller Built-In 133 Mode With RF Remote Control For Led Rgb Magic Color Light Strip
Description - Text Version

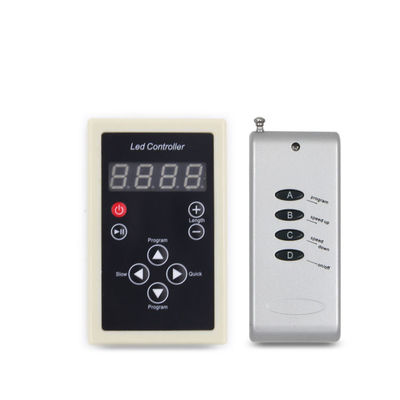

6803 IC light strip LED dimming magic color controller DC12V with 8 keys RF remote control only for 6803 IC LED magic light strip
Product Brief:
◆This controller is a pixel IC magic color controller, which can only control the magic color IC6803 light strip;
◆There ar
e 100 preset programs, and the length of the program unit is adjustable;
◆Built-in 133 cycle modes, and the running speed is also adjustable;
◆The light bar can be cascaded infinitely;
◆At the same time, it has the function of long-distance wireless remote control, and the function of shutdown memory and playback.
◆This controller can provide many gorgeous decoration schemes, which can be customized according to your own preferences Choose different modes to meet the needs of different customers to the greatest extent. Basic



Input voltage: DC12V
Output power: 2W
Output: Two sets of SPI signals
Remote control size: L85*W35*H15mm
Receiver size: L92*W55*H25mm
Packing size: L135*W80*H55mm
Net weight: 107g
Gross weight: 138g
Connection method: common anode
Connection method: LED light output, DC12V IN power input
Remote control battery: 12V23A battery (not included)
Remote control distance: about 20m
24W Customized LED Pixel Controller With RF Remote Control 133 Mode 0
24W Customized LED Pixel Controller With RF Remote Control 133 Mode 1
24W Customized LED Pixel Controller With RF Remote Control 133 Mode 2
24W Customized LED Pixel Controller With RF Remote Control 133 Mode 3
24W Customized LED Pixel Controller With RF Remote Control 133 Mode 4
