| Place of Origin: | Guangdong, China |
| Certification: | CE |
| Model Number: | S-20-5 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Neutral Carton box Package<br>(One-stop Lighting Power Supply Solution Matching Service, welcome to consult) |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Output Power: | 20W | Output Type: | Single |
|---|---|---|---|
| Input Voltage: | AC100-240V | Output Voltage: | 5V |
| Output Frequency: | 50-60Hz | Output Current: | 4A |
| Product Name: | AC To DC Swtiching Power | Application: | LED Strip |
| Warranty: | 2 Years | Type: | Constant Voltage |
| Efficiency: | 85% | Weight: | 0.115kg |
| Size: | 85*58*35mm | Protections: | OPP OVP SCP OCP |
| Material: | Aluminium |

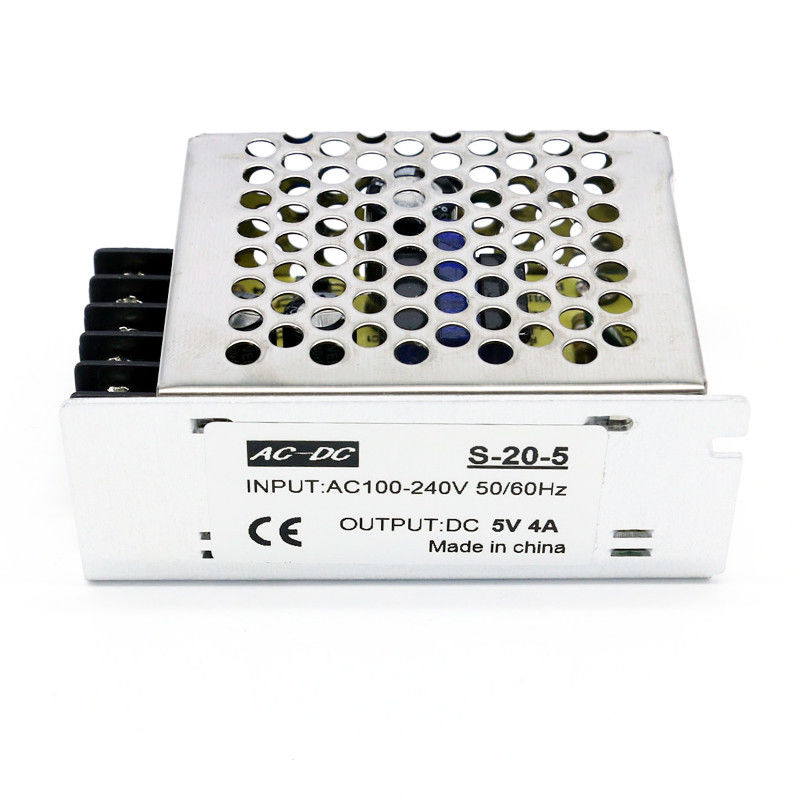

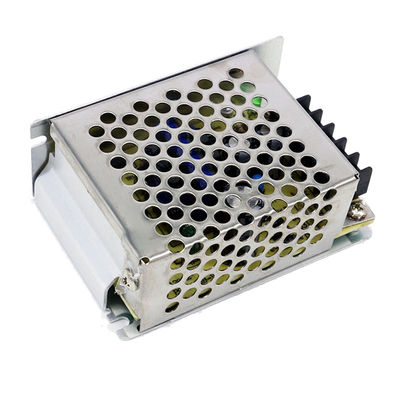

AC to DC 5V 20W 4A Metal Shell Indoor Low Voltage Switching Power Supply
|
Model |
S-20-5 |
|
AC input voltage range(V) |
AC100-240V |
|
AC Input current(max) |
0.36A /AC220V;0.72A/AC110V |
|
Frequency (Hz) |
50/60Hz |
|
Efficiency |
85% Typ(230VACFull Load) |
|
Inrush current(A) |
Cold-start 20A/230V |
|
Leakage current(mA) |
<3mA/240VAC |
|
Output Voltage(V) |
5V DC |
|
Voltage Range |
5V±5% |
|
Output Current(A) |
4A |
|
Current Range (A) |
0-4A |
|
Rated Power(W) |
20W |
|
Start time,hold-up time(ms) |
Ton≤1000ms,Td≥20ms @230Vac Full Load |
|
Rise time(ms) |
Typ:20ms @230Vac Full Load |
|
Ripple/Noise(mVp-p) |
120mVp-p |
|
working Temperature (°C) |
-40°C - +65°C(refer derating curve) |
|
Storage Temperature(°C) |
-20°C - +60°C |
|
Humidity |
20% - 90% RH non condensing |
|
Over voltage Protection |
>115%-135% Rated output voltage |
|
Over load Protection |
>105%-150% Auto recovery |
|
Short circuit Protection |
Latched |
|
Size L*W*H(cm) |
8.5*5.8*3.5cm |
|
Weight |
115g |
Product Description
Specification
|
item |
value |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
MegBox |
|
Model Number |
S-20-5 |
|
Output Power |
20W |
|
Output Type |
Single |
|
Input Voltage |
AC100-240V |
|
Output Voltage |
5V |
|
Output Frequency |
50-60Hz |
|
Output Current |
4A |
|
Product Name |
Swtiching Power |
|
Application |
LED Strip |
|
Warranty |
2 Years |
|
Certification |
CE |
|
Type |
Constant Voltage |
|
Efficiency |
85% |
|
Weight |
0.12kg |
|
Size |
85*58*35mm |
|
Protections |
OPP OVP SCP OCP |
|
Name |
AC DC Power Module Converter |
|
|
