| Place of Origin: | Guangdong, China |
| Certification: | CE ROHS |
| Model Number: | S-15-5 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Neutral Carton box Package<br>(One-stop Lighting Power Supply Solution Matching Service, welcome to consult) |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Output Power: | 15W | Input Voltage: | AC100-240V |
|---|---|---|---|
| Output Voltage: | 5V | Output Frequency: | 50-60Hz |
| Output Current: | 3A | Product Name: | Swtiching Power |
| Efficiency: | 86% | Weight: | 110g |
| Size: | 85*58*35mm | Protections: | OPP OVP SCP OCP |
| High Light: | 15W 5V 3A Switching Power Supply,LED 5V 3A Switching Power Supply,Driver switching power supply 5v 3a |
||

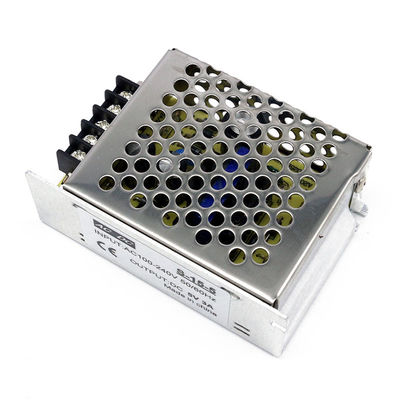

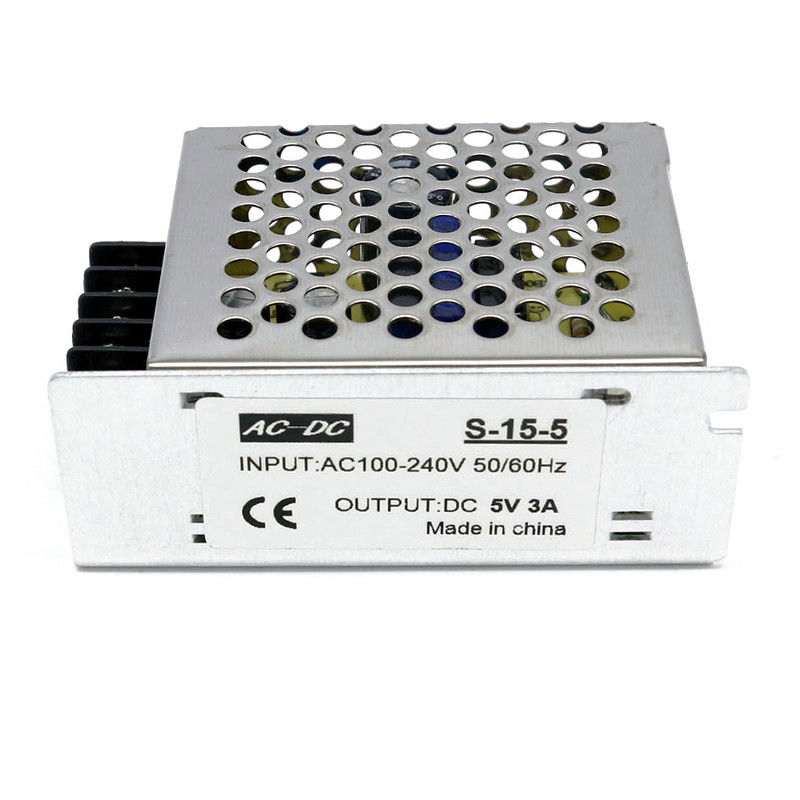

100V 240V AC to DC 12v 15W 5V 3A Switching Power Supply Aluminum Case LED Strip Light Driver
AC 100V 240V to DC 5V 15W 3A Metal Shell Indoor Constant Voltage Switching Power Transformer Adapter for LED Display Lights
|
Model |
S-15-5 |
|
AC input voltage range(V) |
AC100-240V |
|
AC Input current(max) |
0.34A /AC220V;0.68A/AC110V |
|
Frequency (Hz) |
50/60Hz |
|
Efficiency |
86% Typ(230VACFull Load) |
|
Inrush current(A) |
Cold-start 20A/230V |
|
Leakage current(mA) |
<3mA/240VAC |
|
Output Voltage(V) |
5V DC |
|
Voltage Range |
5V±5% |
|
Output Current(A) |
3A |
|
Current Range (A) |
0-3A |
|
Rated Power(W) |
15W |
|
Start time,hold-up time(ms) |
Ton≤1000ms,Td≥20ms @230Vac Full Load |
|
Rise time(ms) |
Typ:20ms @230Vac Full Load |
|
Ripple/Noise(mVp-p) |
120mVp-p |
|
working Temperature (°C) |
-40°C - +65°C(refer derating curve) |
|
Storage Temperature(°C) |
-20°C - +60°C |
|
Humidity |
20% - 90% RH non condensing |
|
Over voltage Protection |
>115%-135% Rated output voltage |
|
Over load Protection |
>105%-150% Auto recovery |
|
Short circuit Protection |
Latched |
|
Size L*W*H(cm) |
85*58*35mm |
|
Weight |
110g |
Product Description
Specification
|
item |
value |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
Megbox |
|
Model Number |
S-15-5 |
|
Output Power |
15W |
|
Output Type |
Single |
|
Input Voltage |
AC100-240V |
|
Output Voltage |
5V |
|
Output Frequency |
50-60Hz |
|
Output Current |
3A |
|
Product Name |
Swtiching Power |
|
Application |
LED Strip |
|
Warranty |
2 Years |
|
Certification |
CE |
|
Type |
Constant Voltage |
|
Efficiency |
86% |
|
Weight |
110g |
|
Size |
85*58*35mm |
|
Protections |
OPP OVP SCP OCP |
|
Name |
AC DC Power Module Converter |
|
|
|
|
|
|
|
|
