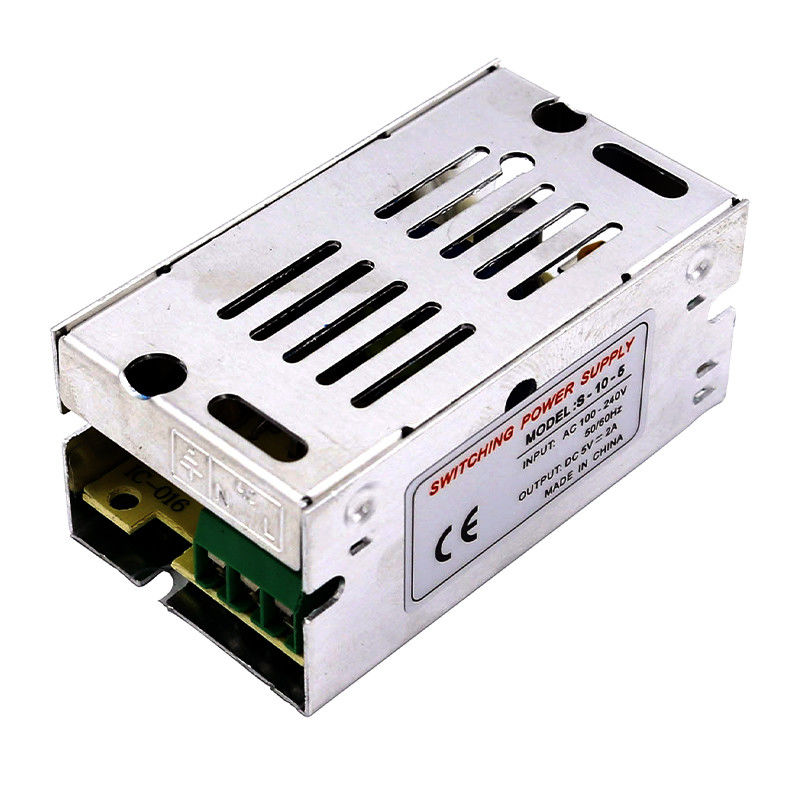

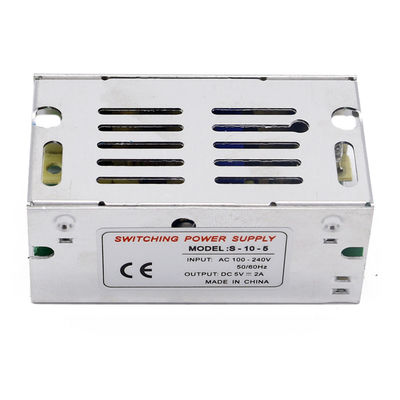

Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting

Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting

Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting
  • Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting
  • Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting
Product Details:
Place of Origin: Guangdong, China
Certification: CE
Model Number: S-10-5
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 3 layers of safety packaging
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output Power: 10W Input Voltage: AC100-240V
Output Voltage: 5V Output Frequency: 50-60Hz
Output Current: 2A Product Name: Swtiching Power
Application: LED Strip Efficiency: 90%
Weight: 110g Size: 85*58*35mm
Protections: OPP OVP SCP OCP Name: AC DC Power Module Converter
High Light:

Switch Power Supply 5V

,

Switch Power Supply AC100V

,

Indoor switching power supply 5v 2a

Mini Indoor Switching Power Supply AC100V 240V to DC 5V 10W 2A LED Light Adapter for Urban Lighting



AC 100V 240V to DC 5V 10W 2A Metal Shell Indoor Constant Voltage Switching Power Transformer Adapter for LED Display Lights

Model

S-10-5

AC input voltage range(V)

AC100-240V

AC Input current(max)

0.22A /AC220V;0.45A/AC110V

Frequency (Hz)

50/60Hz

Efficiency

90% Typ(230VACFull Load)

Inrush current(A)

Cold-start 20A/230V

Leakage current(mA)

<3mA/240VAC

Output Voltage(V)

DC 5V

Voltage Range

5V±5%

Output Current(A)

2A

Current Range (A)

0-2A

Rated Power(W)

10W

Start time,hold-up time(ms)

Ton≤1000ms,Td≥20ms @230Vac Full Load

Rise time(ms)

Typ:20ms @230Vac Full Load

Ripple/Noise(mVp-p)

120mVp-p

working Temperature (°C)

-40°C - +65°C(refer derating curve)

Storage Temperature(°C)

-20°C - +60°C

Humidity

20% - 90% RH non condensing

Over voltage Protection

>115%-135% Rated output voltage

Over load Protection

>105%-150% Auto recovery

Short circuit Protection

Latched

Size L*W*H

L70*W40*H30mm

Weight

68g

Product Description

Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting 0

Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting 1

Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting 2

Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting 3

Specification

item

value

Place of Origin

China



Guangdong

Brand Name

Megbox

Model Number

S-10-5

Output Power

10W

Output Type

Single

Input Voltage

AC100-240V

Output Voltage

5V

Output Frequency

50-60Hz

Output Current

2A

Product Name

Swtiching Power

Application

LED Strip

Warranty

2 Years

Certification

CE

Type

Constant Voltage

Efficiency

90%

Weight

68g

Size

70*40*30mm

Protections

OPP OVP SCP OCP

Name

AC DC Power Module Converter
