| Place of Origin: | Guangdong, China |
| Certification: | CE |
| Model Number: | CBS-150-12 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Neutral Carton box Package<br>(One-stop Lighting Power Supply Solution Matching Service, welcome to consult) |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Output Power: | 150W | Input Voltage: | AC110V-220V |
|---|---|---|---|
| Output Voltage: | 12V | Output Frequency: | 50-60Hz |
| Output Current: | 12.5A | Product Name: | Chassis Switching Power Supply |
| Warranty: | 2 Years | Type: | AC DC Power Module Converter |
| Efficiency: | 80% | Weight: | 510g |
| Size: | 159*99*30mm | Protection: | OCP OVP SCP OPP |
| High Light: | Switch Power Supply 150W,Ultra Slim Switch Power Supply,2.5A aluminum power supply |
||

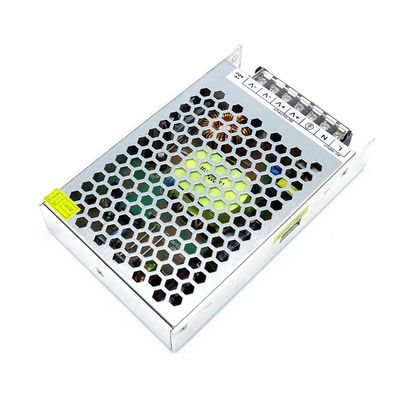

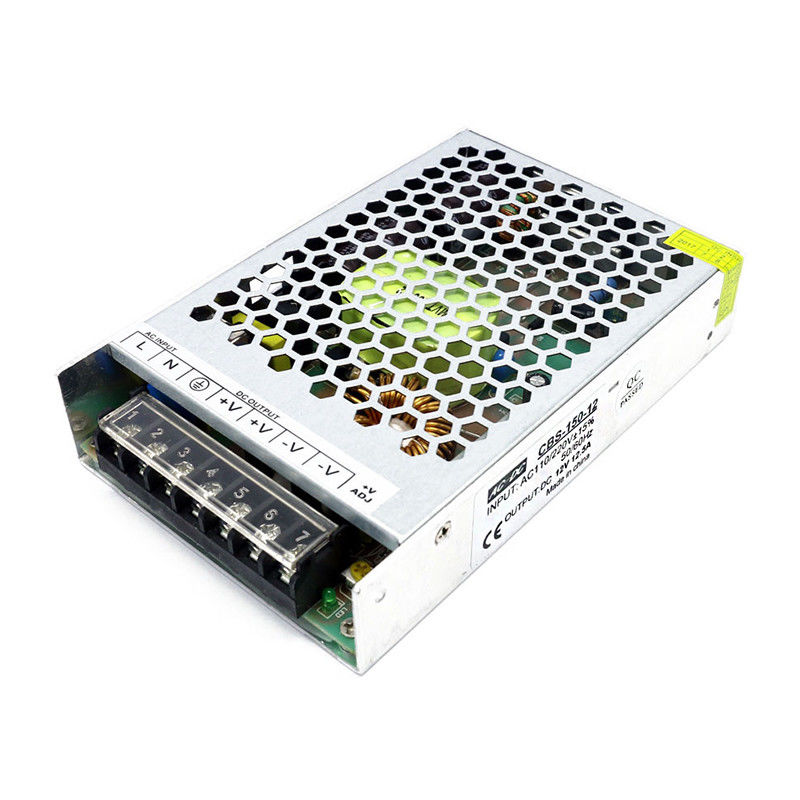

150W Switching Power Supply Aluminum Ultra Slim 110V 220V AC to DC 12V 2.5A Converter Transformer LED Driver
|
Model
|
CBS-150-12
|
|
AC input voltage range(V)
|
AC110/220V±15%
|
|
AC Input current(max)
|
3.4A /AC220V;6.8A/AC110V
|
|
Frequency (Hz)
|
50/60Hz
|
|
Efficiency
|
80% Typ(230VACFull Load)
|
|
Inrush current(A)
|
Cold-start 20A/230V
|
|
Leakage current(mA)
|
<3mA/240VAC
|
|
Output Voltage(V)
|
12V DC
|
|
Voltage Regulation
|
+10%,-10%
|
|
Output Current(A)
|
12.5A
|
|
Current Range (A)
|
0-12.5A
|
|
Rated Power(W)
|
150W
|
|
Start time,hold-up time(ms)
|
Ton≤1000ms,Td≥20ms @230Vac Full Load
|
|
Rise time(ms)
|
Typ:20ms @230Vac Full Load
|
|
Ripple/Noise(mVp-p)
|
120mVp-p
|
|
working Temperature (°C)
|
-40°C - +65°C(refer derating curve)
|
|
Storage Temperature(°C)
|
-20°C - +60°C
|
|
Humidity
|
20% - 90% RH non condensing
|
|
Over voltage Protection
|
>115%-135% Rated output voltage
|
|
Over load Protection
|
>105%-150% Auto recovery
|
|
Short circuit Protection
|
Latched
|
|
Size L*W*H(mm)
|
159*99*30
|
|
Weight
|
510g
|
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Megbox
|
|
Model Number
|
CBS-150-12
|
|
Output Power
|
150W
|
|
Output Type
|
Single
|
|
Input Voltage
|
AC110V-220V
|
|
Output Voltage
|
12V
|
|
Output Frequency
|
50-60Hz
|
|
Output Current
|
12.5A
|
|
Product Name
|
Chassis Switching Power Supply
|
|
Application
|
LED Lighting
|
|
Warranty
|
2 Years
|
|
Certification
|
CE
|
|
Type
|
AC DC Power Module Converter
|
|
Efficiency
|
80%
|
|
Weight
|
510g
|
|
Size
|
159*99*30mm
|
|
Protection
|
OCP OVP SCP OPP
|
|
Protections
|
Short Circuit Overtemp Overload Overvolt
|
