| Place of Origin: | Guangdong, China |
| Certification: | CE |
| Model Number: | S-800-12 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Neutral Carton box Package<br>(One-stop Lighting Power Supply Solution Matching Service, welcome to consult) |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Output Power: | 800W | Output Voltage: | 12V |
|---|---|---|---|
| Output Frequency: | 50-60Hz | Output Current: | 66.6A |
| Product Name: | Chassis Switching Power Supply | Warranty: | 2 Years |
| Type: | AC DC Power Module Converter | Efficiency: | 84% |
| Weight: | 1.24kg | Size: | L242*W124*H65mm |
| High Light: | 12V Switching Power Supply 800W,Aluminum Case 12V Switching Power Supply |
||

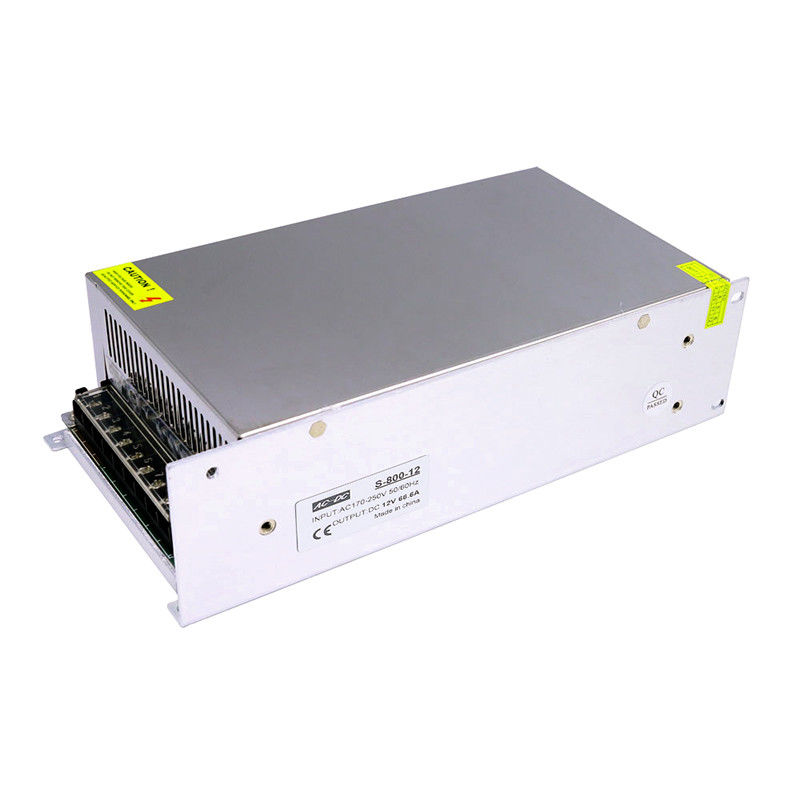

◆ The shell is made of high-quality metal material with good pressure resistance. Heat dissipation is fast. Durable and Corrosion Resistant

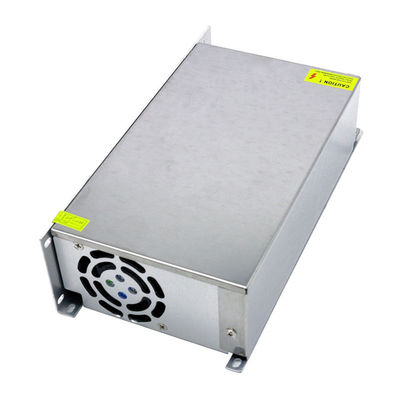

◆ Built-in cooling fan, openings on the metal shell, more efficient heat dissipation.
|
Model
|
S-800-12
|
|
AC input voltage range(V)
|
AC 170~250V
|
|
AC Input current(max)
|
16.8A /AC220V;
|
|
Frequency (Hz)
|
50/60Hz
|
|
Efficiency
|
84% Typ(230VACFull Load)
|
|
Inrush current(A)
|
Cold-start 20A/230V
|
|
Leakage current(mA)
|
<3mA/240VAC
|
|
Output Voltage(V)
|
DC12V
|
|
Voltage Regulation
|
DC12V±0.5
|
|
Output Current(A)
|
66.6A
|
|
Current Range (A)
|
0-66.6A
|
|
Rated Power(W)
|
800W
|
|
Start time,hold-up time(ms)
|
Ton≤1000ms,Td≥20ms @230Vac Full Load
|
|
Rise time(ms)
|
Typ:20ms @230Vac Full Load
|
|
Ripple/Noise(mVp-p)
|
120mVp-p
|
|
working Temperature (°C)
|
-40°C - +65°C(refer derating curve)
|
|
Storage Temperature(°C)
|
-20°C - +60°C
|
|
Humidity
|
20% - 90% RH non condensing
|
|
Over voltage Protection
|
>115%-135% Rated output voltage
|
|
Over load Protection
|
>105%-150% Auto recovery
|
|
Short circuit Protection
|
Latched
|
|
Size L*W*H(cm)
|
242*124*65mm
|
|
Weight
|
1240g
|
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Megbox
|
|
Model Number
|
S-800-12
|
|
Output Power
|
100W
|
|
Output Type
|
Single
|
|
Input Voltage
|
AC170V-250V
|
|
Output Voltage
|
12V
|
|
Output Frequency
|
50-60Hz
|
|
Output Current
|
66.6A
|
|
Product Name
|
Chassis Switching Power Supply
|
|
Application
|
LED Lighting
|
|
Warranty
|
2 Years
|
|
Certification
|
CE
|
|
Type
|
AC DC Power Module Converter
|
|
Efficiency
|
84%
|
|
Weight
|
1.24kg
|
|
Size
|
L242*W124*H65mm
|
|
Protection
|
OCP OVP SCP OPP
|
|
Protections
|
Short Circuit Overtemp Overload Overvolt
|
|
|
