Name: 60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
Brand: 60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
SKU: S-60-12
Rating: 4.7 (190 reviews)

Home Products Switch Power Supply

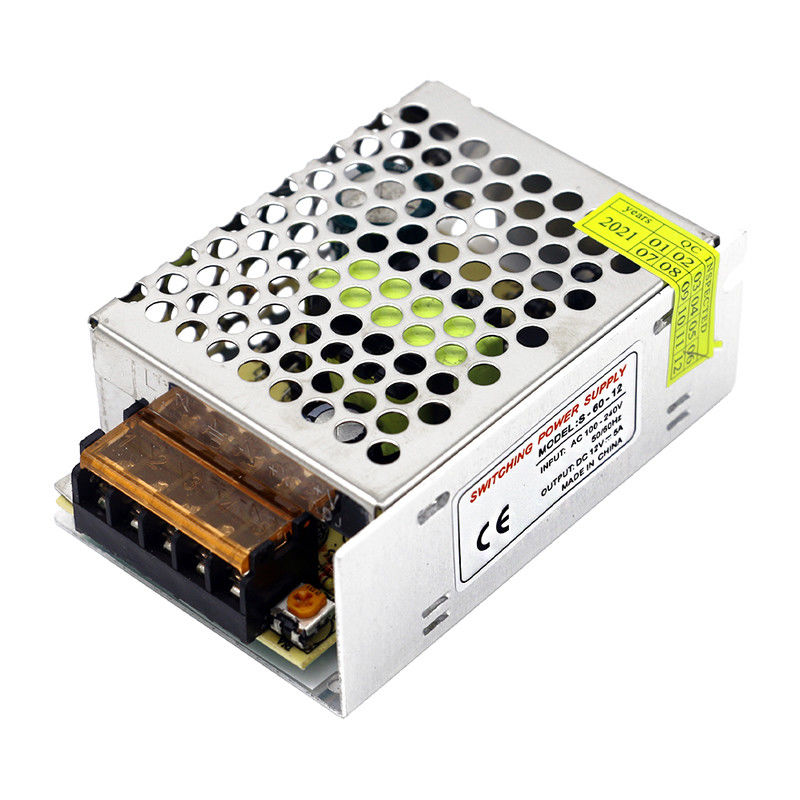

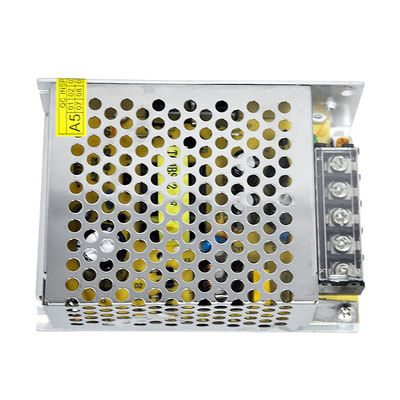

60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage

Product Details:

Place of Origin:	Guangdong, China
Certification:	CE
Model Number:	S-60-12

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	30pcs/box
Delivery Time:	3-10days
Payment Terms:	T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Output Power:	60W	Input Voltage:	AC100V-240V
Output Voltage:	12V	Output Frequency:	50-60Hz
Output Current:	5A	Product Name:	Chassis Switching Power Supply
Type:	AC DC Power Module Converter	Weight:	185g
Size:	L110W78H35(mm)	Protections:	Short Circuit Overtemp Overload Overvolt
High Light:	60W Switch Power Supply , 5A Switch Power Supply , Constant Voltage switching power supply

AC 100-240V to DC DC12V 60W 5A Indoor Cabinet Switching Power Supply LED Lighting Electronic Constant Voltage Regulator Driver

1: The product has short circuit protection, overload protection and overvoltage protection.

2: High quality, high efficiency, high service life, high reliability; low energy consumption, low output ripple, low operating temperature.

Thickened metal shell

◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.

◆There are many cooling holes on the metal shell. Can quickly dissipate heat.

Featured Components

Selected high-quality components, sufficient power. Stable output, energy saving and safer

Suitable for a variety of electronic devices

Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

Easy to install and easy to use

Model	S-60-12
AC input voltage range(V)	AC 100V-240V
Input current(A)	2A/115VAC;1A/230VAC
Frequency (Hz)	50/60Hz
Efficiency	86%(230VACFull Load)
Inrush current(A)	cold start 20A/115V AC 40A/230VAC
Leakage current(mA)	<3.5mA/240VAC
Output Voltage(V)	+12VDC
Voltage Regulation	±10%
Output Current(A)	5A
Current Range (A)	0-5A
Rated Power(W)	60W
Start time, hold-up time(ms)	300ms/230VAC 800ms,/115VAC at full load
Rise time(ms)	50ms at Full Load
Ripple/Noise(MVP-p)	120mVp-p
working Temperature (°C)	-10 centidegree to+60 centidegree


Storage Temperature(°C)	-20 centidegree to+85 centidegree
Humidity	20% to90%RH non condensing
Over voltage Protection	>115%-135% Rated output voltage


Over load Protection	>105%-150% Auto recovery
Short circuit Protection	Latched
Size LWH(mm)	1107835
Weight	185g

Product Description

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	Megbox
Model Number	S-60-12
Output Power	60W
Output Type	Single
Input Voltage	AC100V-240V
Output Voltage	12V
Output Frequency	50-60Hz
Output Current	5A
Product Name	Chassis Switching Power Supply
Application	LED Lighting
Warranty	2 Years
Certification	CE
Type	AC DC Power Module Converter
Efficiency	86%
Weight	185g
Size	L110W78H35(mm)
Protection	OCP OVP SCP OPP
Protections	Short Circuit Overtemp Overload Overvolt
