| Place of Origin: | Guangdong, China |
| Certification: | CE |
| Model Number: | S-50-12 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 50pcs/box |
| Delivery Time: | 3-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Output Power: | 50W | Input Voltage: | AC100-240V |
|---|---|---|---|
| Output Voltage: | 12V | Output Frequency: | 50-60Hz |
| Output Current: | 4.2A | Product Name: | Chassis Switching Power Supply |
| Type: | AC DC Power Module Converter | Weight: | 185g |
| Size: | L110*W78*H36(mm) | Protections: | Short Circuit Overtemp Overload Overvolt |
| High Light: | Switching Power Supply 50W,Switching Power Supply 4.2A |
||

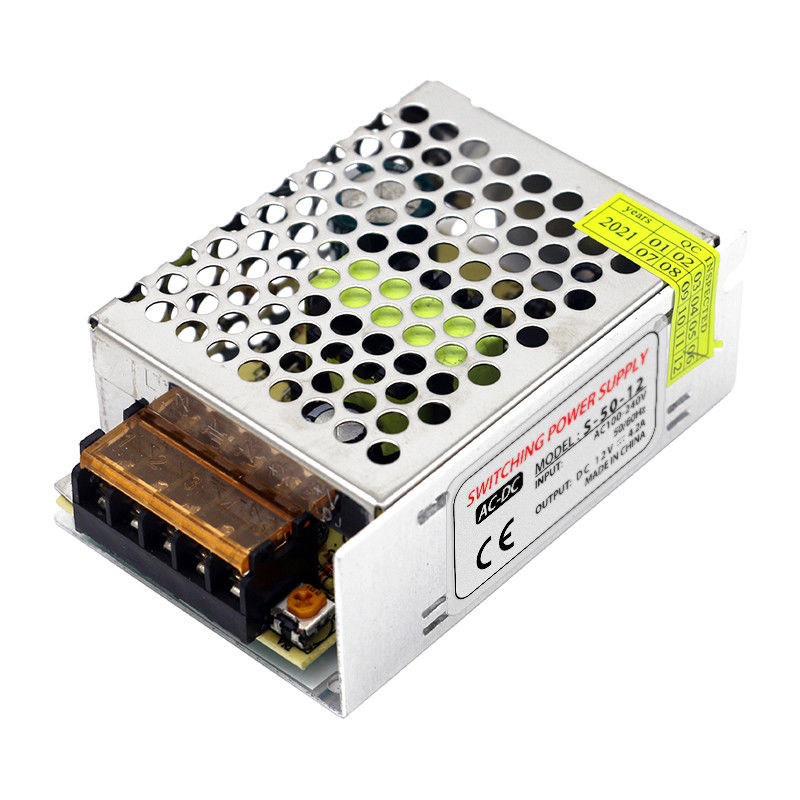

DC 12V 50W 4.2A LED Lighting Universal Voltage Regulator Drive Power AC 100V 240V to DC Switching Power Converter Transf
AC 100V 240V to DC Switching Power Converter DC 12V 180W 15A LED Lighting Universal Voltage Regulator Drive Power
◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

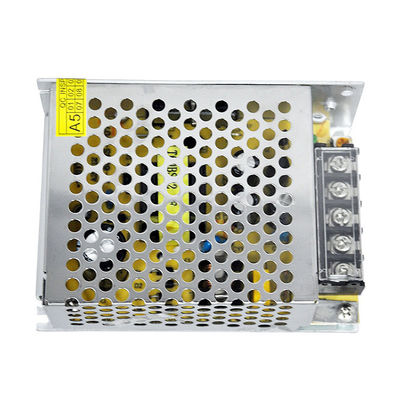

Thickened metal shell
◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.
◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
Featured Components
High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;
Suitable for a variety of electronic devices
Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
|
Model |
S-50-12 |
|
AC input voltage range(V) |
AC 85V-265V |
|
Input current(A) |
2A/115VAC 1A/230VAC |
|
Frequency (Hz) |
47Hz-63Hz |
|
Efficiency |
90%(230VACFull Load) |
|
Inrush current(A) |
cold start 20A/115V AC 40A/230VAC |
|
Leakage current(mA) |
<3.5mA/240VAC |
|
Output Voltage(V) |
+12VDC |
|
Voltage Regulation |
±10% |
|
Output Current(A) |
4.2A |
|
Current Range (A) |
0-4.2A |
|
Rated Power(W) |
50W |
|
Start time, hold-up time(ms) |
300ms/230VAC 800ms,/115VAC at full load |
|
Rise time(ms) |
50ms at Full Load |
|
Ripple/Noise(MVP-p) |
120mVp-p |
|
working Temperature (°C) |
-40°C -65°C centidegree |
|
Storage Temperature(°C) |
-20 centidegree to+85 centidegree |
|
Humidity |
20% to90%RH non condensing |
|
Over voltage Protection |
>115%-135% Rated output voltage |
|
Over load Protection |
>105%-150% Auto recovery |
|
Short circuit Protection |
Latched |
|
Product Size(cm) |
11*7.8*3.6 |
|
Weight(kg) |
0.185 |
Easy to install and easy to use
Product Description
Specification
|
item |
value |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
Megbox |
|
Model Number |
S-50-12 |
|
Output Power |
50W |
|
Output Type |
Single |
|
Input Voltage |
AC100-240V |
|
Output Voltage |
12V |
|
Output Frequency |
50-60Hz |
|
Output Current |
4.2A |
|
Product Name |
Chassis Switching Power Supply |
|
Application |
LED Lighting |
|
Warranty |
2 Years |
|
Certification |
CE |
|
Type |
AC DC Power Module Converter |
|
Efficiency |
90% |
|
Weight |
185g |
|
Size |
L110*W78*H36(mm) |
|
Protection |
OCP OVP SCP OPP |
|
Protections |
Short Circuit Overtemp Overload Overvolt |
